Our B24 Bluetooth Toolkit App is available to download on iOS and Android stores. The B24 system provides provides high quality measurement to iOS and Android phones and tablets.

See app stores for latest features.

This Software title is licensed as FREEWARE. This means it is completely Free to use and can be copied and distributed freely as long as the following conditions are met:

• The source files on the original media cannot be changed in any way and must be distributed in full including any soft documentation.
• The software must not be packaged as an end user application. It must only be used as a configuration tool.
• There must be no charge for the software itself, although a charge may be made for duplication and/or media.
• Component software parts may not be used in third party applications without prior consent from the software author.

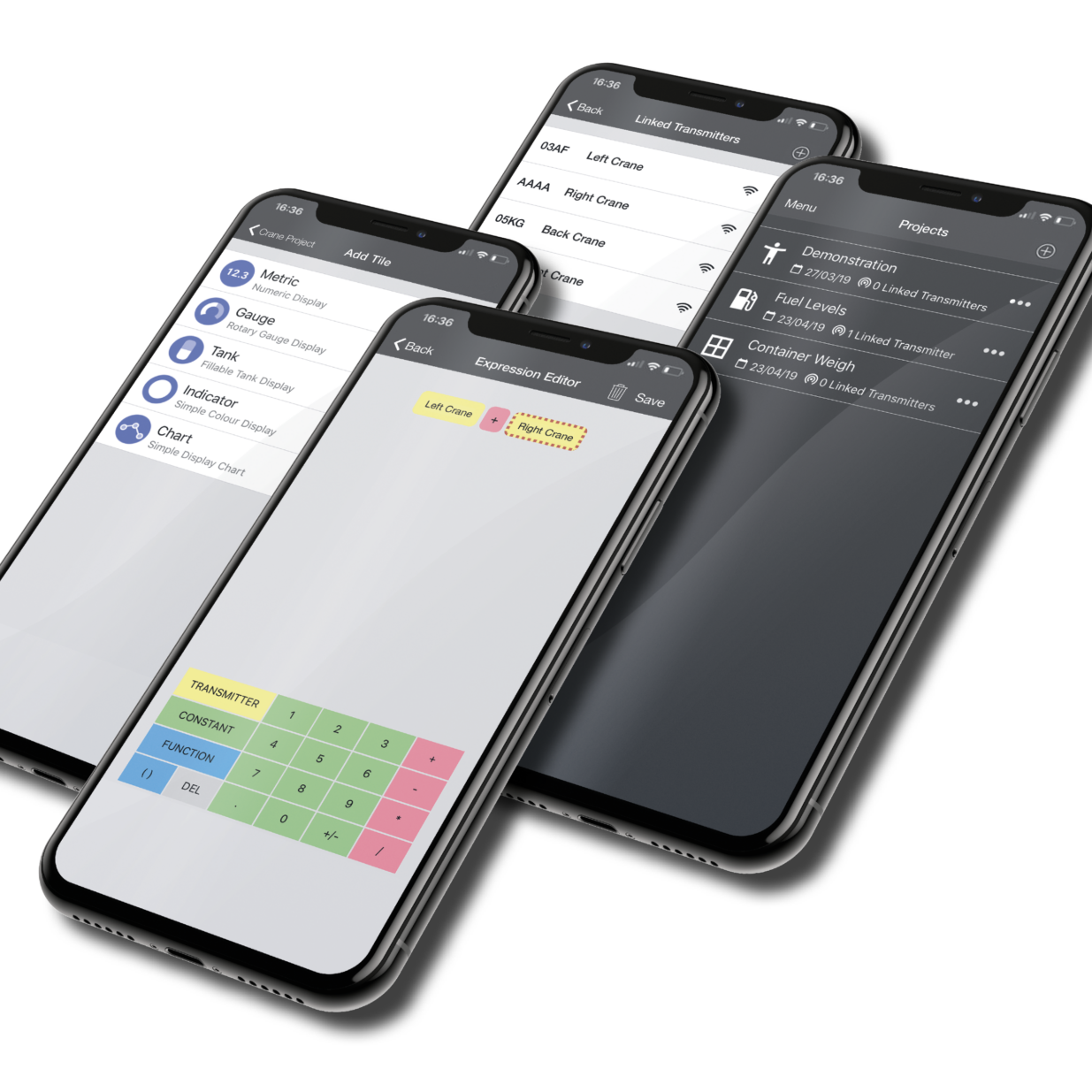

• Our mobile app interface creates uncluttered dashboards for hands-on measurement.
• Display data from your strain bridge module direct to Android or iOS
• Create real time measurement projects via highly configurable dashboard
• Choose from 5 different tile types to customise your dashboard
• Export feature enabling sharing and importing of pre-made dashboards
• Advanced protection using configurable PINs
• Data presented as mathematical expressions to define exactly what gets displayed

.NET Driver Pack

The B24 .NET Driver Pack contains .NET drivers to allow configuration and calibration of B24 modules from a PC for OEM users to create their own production line software using Bluegiga BLED112 Bluetooth® Low Energy Dongle.

Also included is an example .NET programme which shows how the driver can be used and will function as a rudimentary toolkit for B24 module configuration on a PC.

B24 iOS App
B24 Android App

1.3 released 8th April 2020

Bugs Fixed:

• Changed the chart thickness
• Fixed the issue with saving high resolution in iOS
• Fixed the Zero Now behaviour
• Changed the all buttons captions from all capitals to normal for Android
• Fixed the slide menu being opened after return from configuration section in iOS
• Fixed the issue the user could type any amount of commas in number fields in iOS.
• Fixed the issue with iOS when user was selecting transmitter to configure and app connected to the different one. The data tag was added to configure text
• Project export file in iOS has now the name of the project.
• Fixed the Android issue with configuration tabs font sizes. It was automatically resized resulting Calibration title bigger than others on some devices
• Added units to System Zero value in calibration / measurement section.
• Added protection against calibrating with sensitivity range changed, but not saved to device yet.
