IP65 Rated Case and DIN Rail Mounting for DSJ4 (DSC), LCA, UAB, JBA, SMWD3
SKU: D3
Description

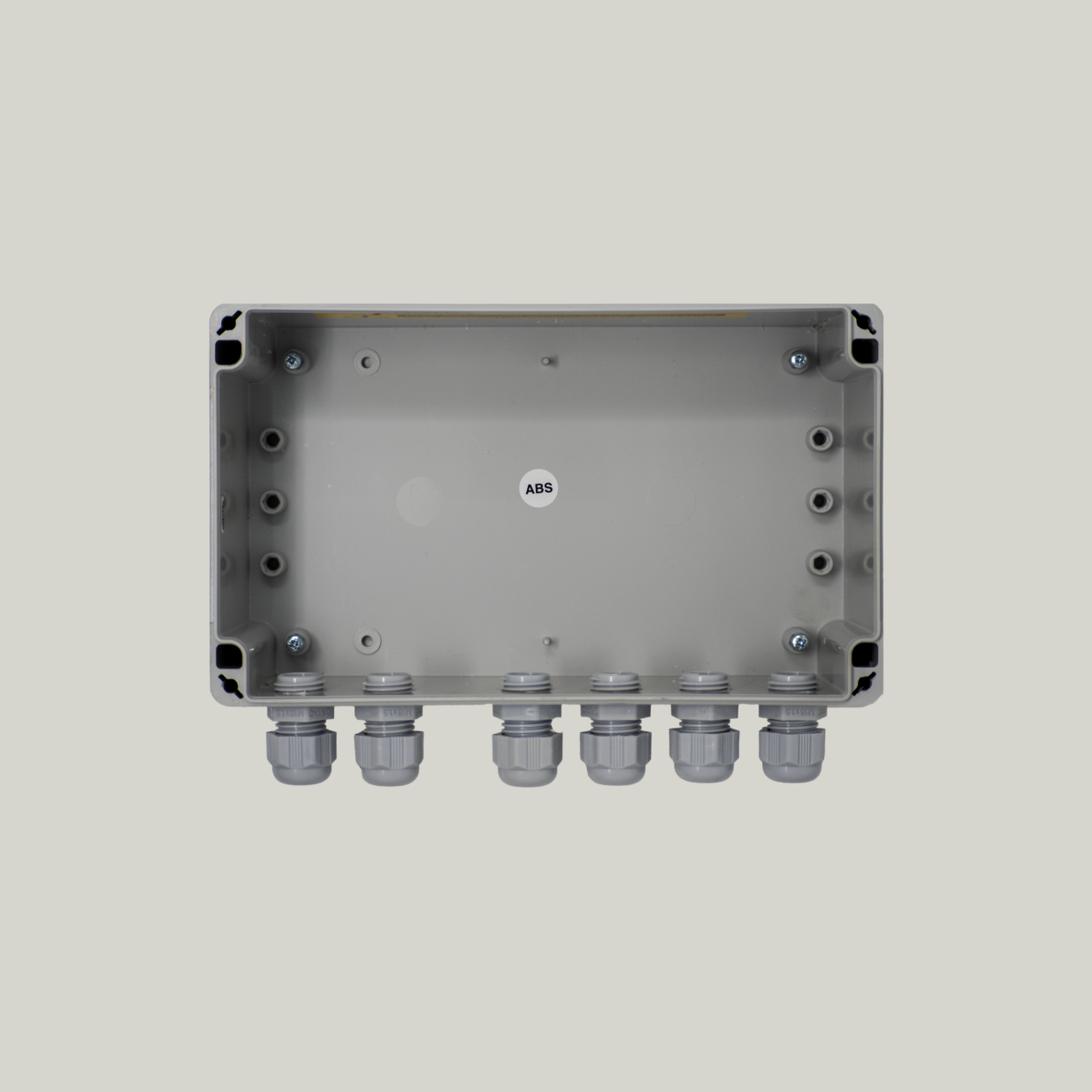

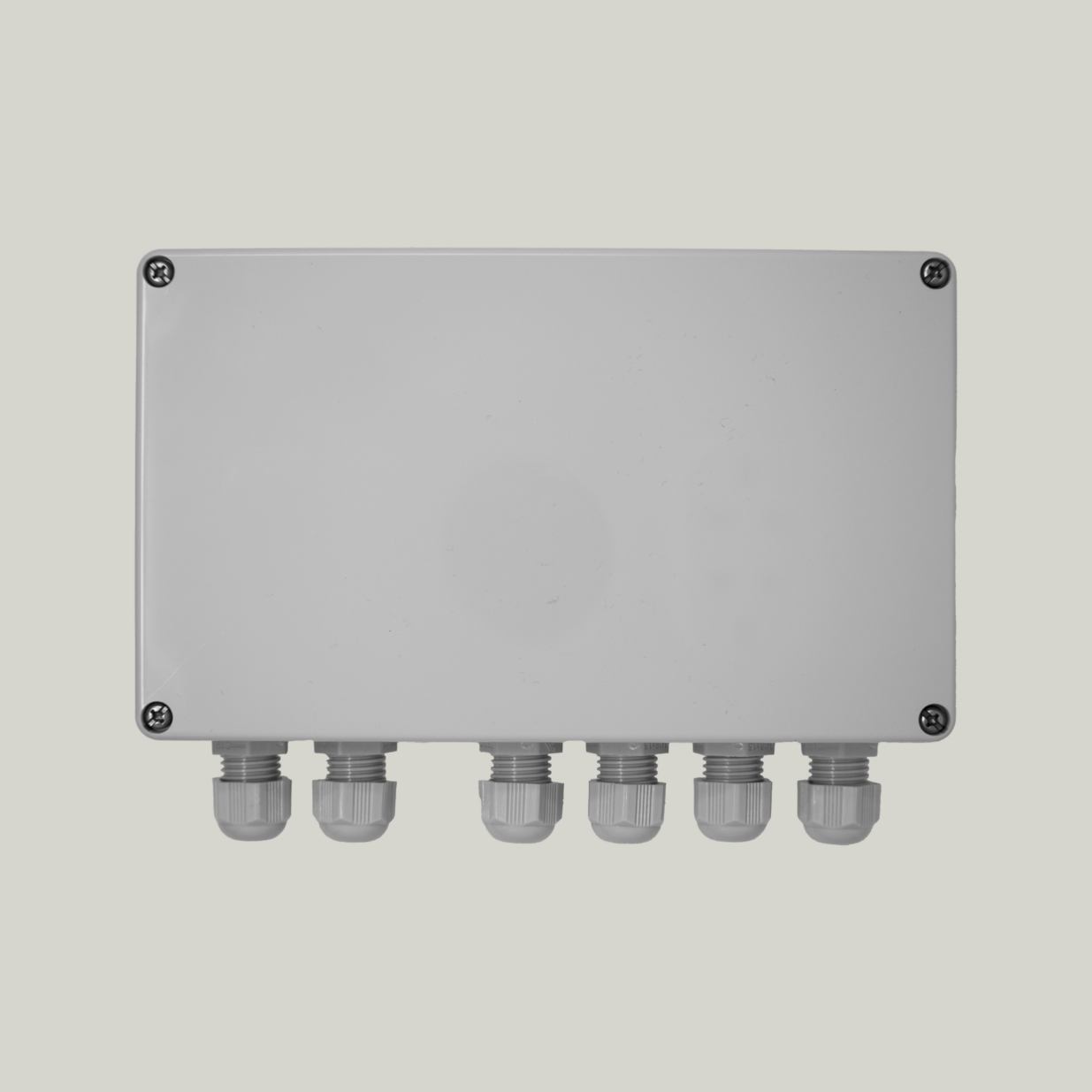

The D3 enclosure is a robust IP65-rated grey ABS housing designed to accommodate Mantracourt’s DIN rail mounted instrumentation such as the DSJ4, LCA20, UAB, JBA or SMW. It offers reliable protection against dust and water ingress, making it ideal for use in demanding industrial environments.

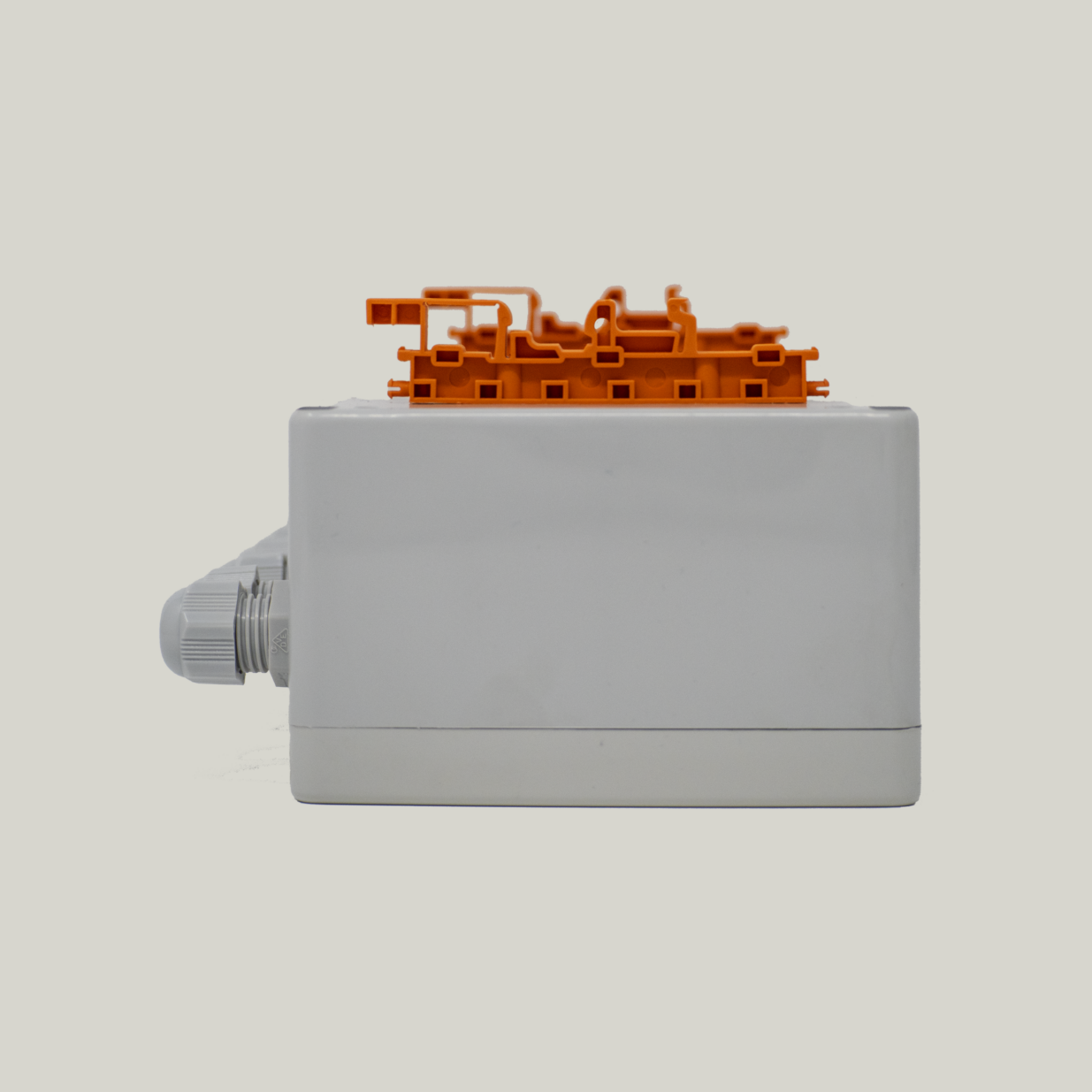

With integrated DIN rail mounting, the D3 enclosure simplifies installation and ensures a secure fit for compatible modules. Its compact form factor and cable entry options make it suitable for control panels and field installations alike.
A clear lid is available as an optional accessory to allow visibility of display elements and status indicators without opening the enclosure.
Product Features & Benefits
-
IP65 rated enclosure for protection against dust and water
-
Grey ABS housing with rugged construction
-
Compatible with DSJ4, LCA20, UAB, JBA, SMW and similar modules
-

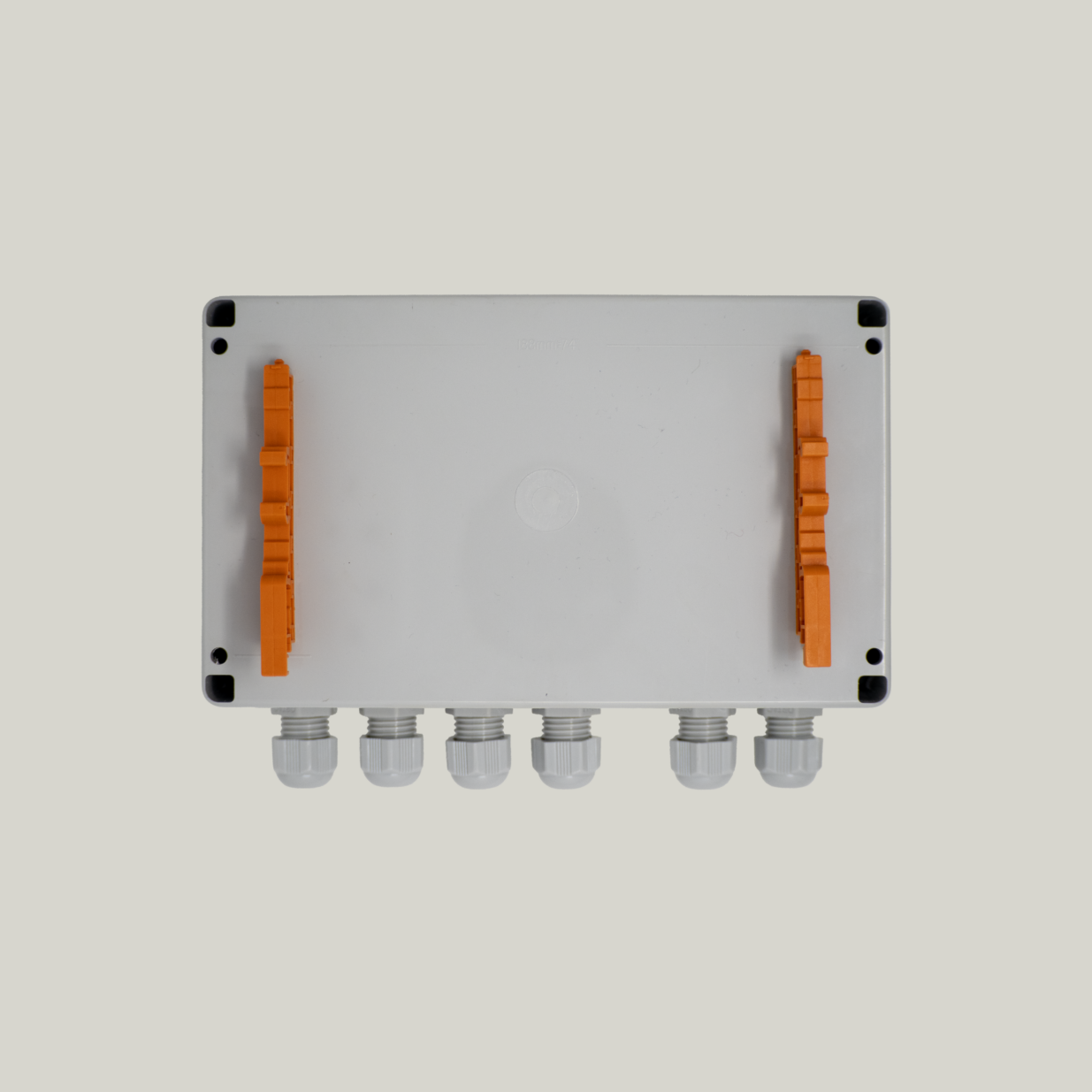

Internal DIN rail for secure module mounting
-
Optional clear lid (Part Code: D3-CLEAR)
-
Cable entry points for field wiring and signal routing
Ideal for use in industrial, laboratory or OEM applications requiring protection and ease of installation.
Specifications
Environmental |
|
|---|---|
| Operating temperature range | -20 to 55 ºC |
| Storage temperature range | -40 to 85 ºC |
| Maximum humidity | 95%RH |
| Environmental protection | IP65 |
Dimensions
200mm x 120 mm 75mm excluding glands
IP65 Glands for cable size 4.5mm-7mm
