LCA20 Programming CablePGM1
Description

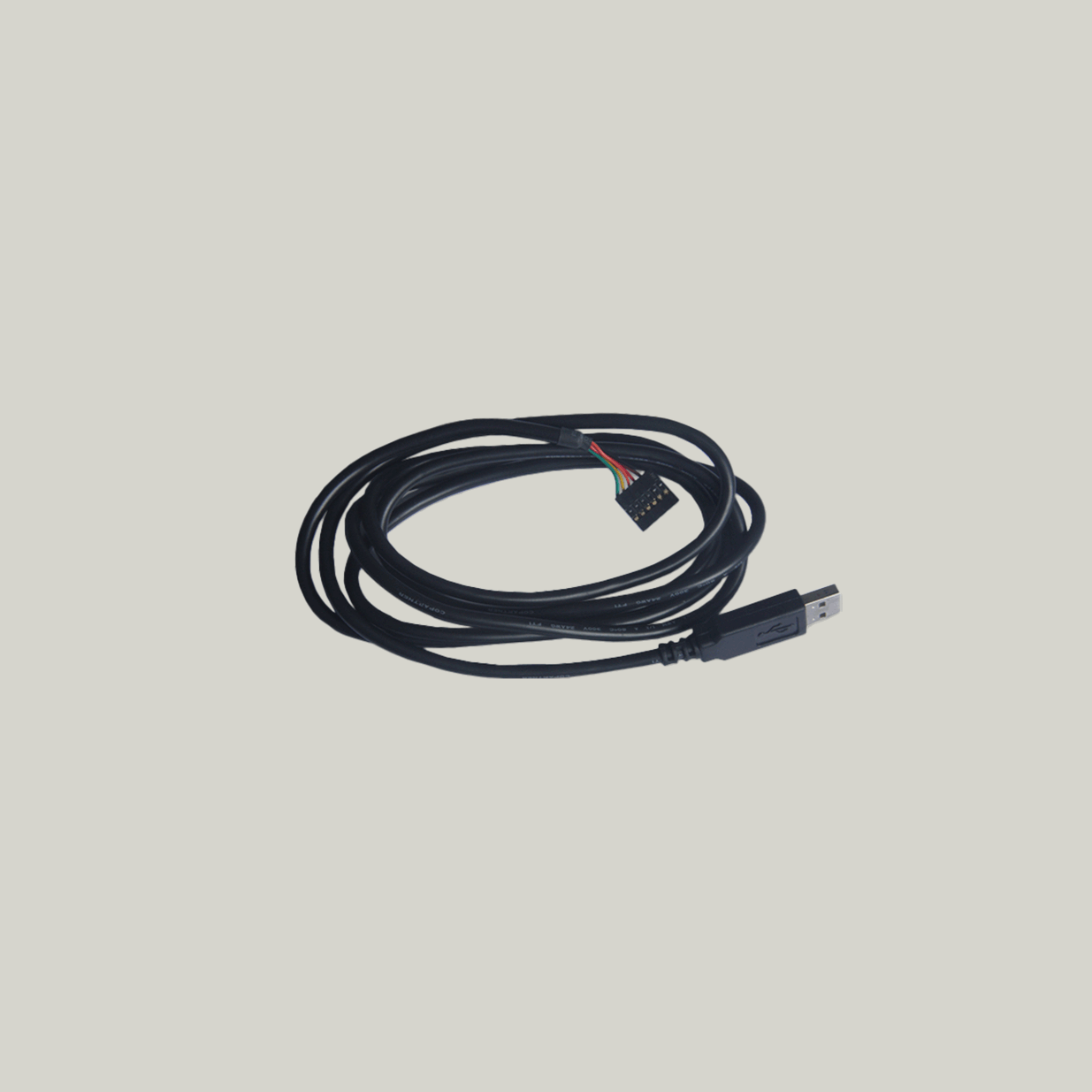

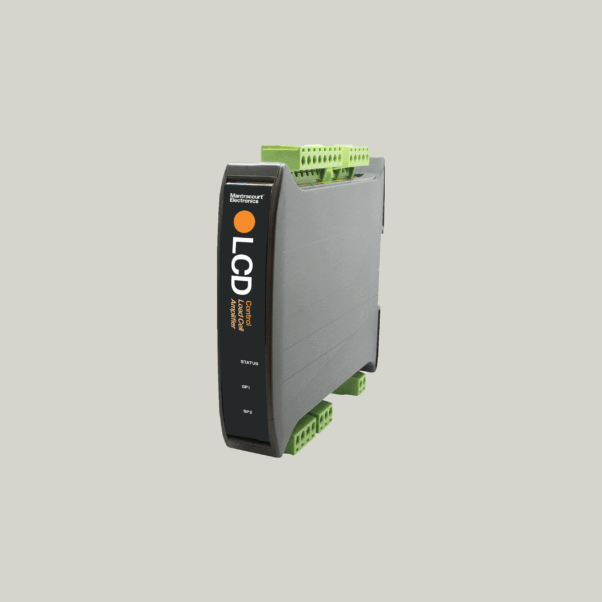

The PGM1 programming cable enables direct communication between the LCD20 load cell amplifier and a PC using the LC Toolkit software. It allows fast configuration, calibration, data logging and firmware updates via a simple USB connection. The PGM1 plugs securely into the 6-way header above the LEDs on the LCD20 module, providing a reliable link for setup and maintenance without opening the device enclosure.
The PGM1 is supplied ready to use and appears as a virtual COM port on the PC once connected. Drivers are freely available from FTDI Chip and installation is automatic on most operating systems.
Mantracourt offers two convenient programming options for the LCD20:
-
PGM1 Programming Lead for PC-based setup using LC Toolkit software
-

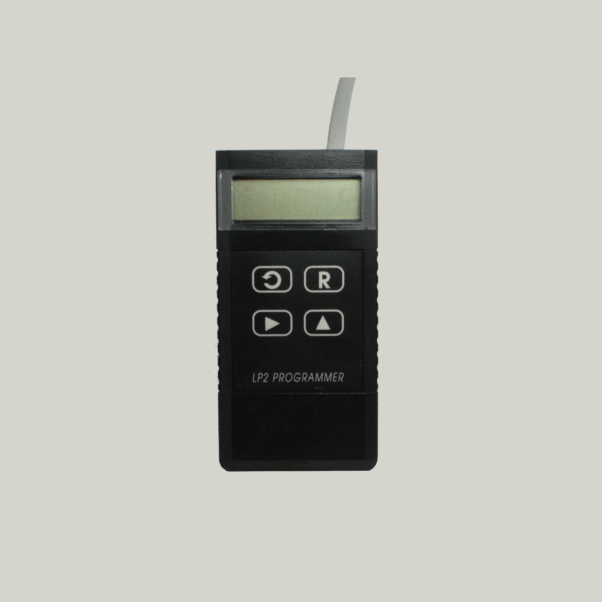

LP2 Remote Handheld Programmer for on-site configuration without a PC
Product Features & Benefits
-
Simple plug-and-play connection via USB
-
Provides access to all LCD20 configuration parameters
-
Supports firmware updates, calibration and data logging
-
Appears as a virtual COM port for easy integration
-
No need to open the amplifier enclosure for setup
-
Compatible with LC Toolkit software (free download)
-
Robust, high-quality FTDI-based interface for reliable communication
FAQ

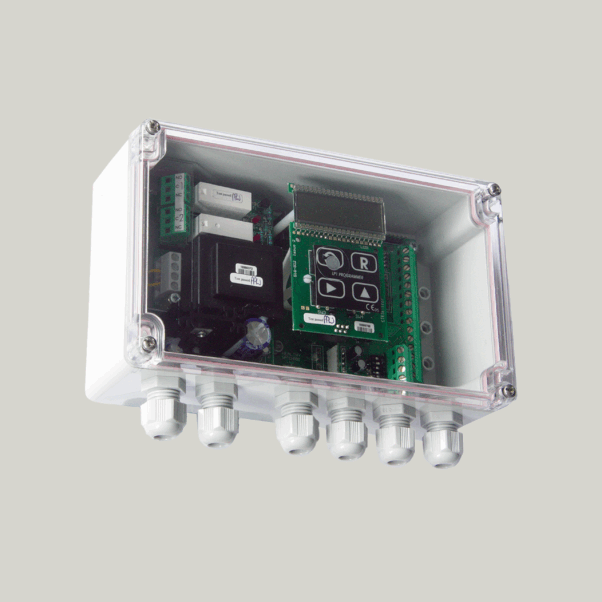

| Q | Can the LCD20 perform the same functions as the LCA20? |
| A | The LCD20 has most of LCA20’s functionality. However, there are a few exceptions. The differences are as follows:
|
| Q | How do you configure the LCD20? |
| A | This can be done either using the PGM1 cable and Toolkit or the remote handheld programmer (LP2) |
| Q | Is the LCD20 toolkit similar to the toolkit used for the LCA20? |
| A | Yes, the navigation of the two is identical and the same user-friendly graphical interface is still in place. |
| Q | How can I connect to a LCD20 without knowing the baudrate and station number? |
| A | Behind the front panel is a small red button, if you press connect in the LCD Toolkit and press the red button it will auto connect to the module. |
| Q | Can the LCD20 provide readings in tension and compression? |
| A | Yes |
| Q | Is it possible to connect two LCD20s to one load cell? How would the scaling of each remain stable in the event of a failure of one or the other ? Can the output of the load cell be connected to both LCAs? With perhaps a resistor network holding the input of the second to a reference ? |
| A | This is done using 6 wire, with the second LCA20 as 5 wire (no “+” excitation). You could have two 6 wire with two blocking diodes (for redundancy). Or a separate power supply and two 5 wires. |
| Q | Â Can you tell if the calibration has been changed on the LCD20? |
| A | Yes, in the calibration menu you can view the last calibration date and calibration counter. |
