Miniature Analogue Strain Gauge Amplifier with 0-10 V 3 Wire OutputICA1H
Description

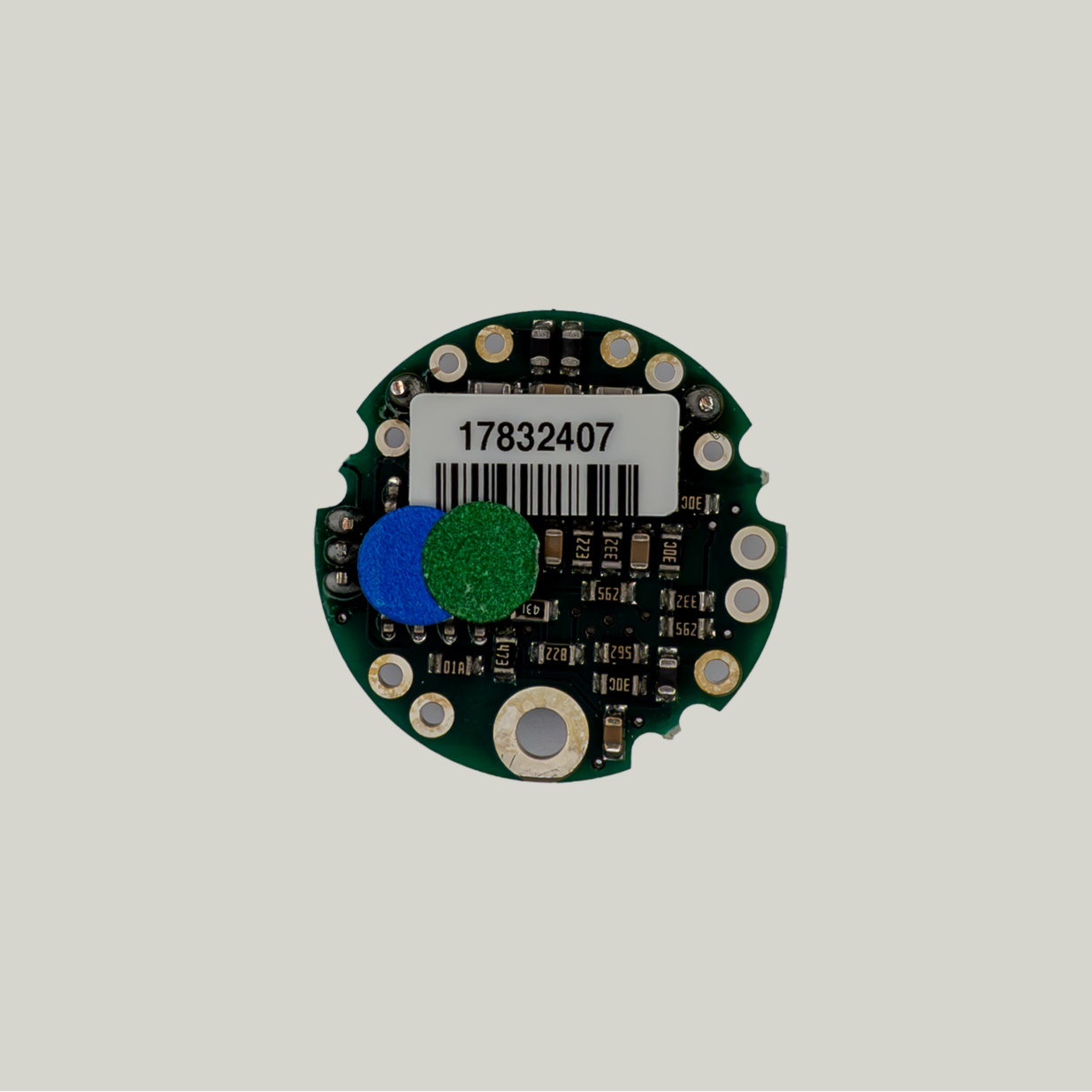

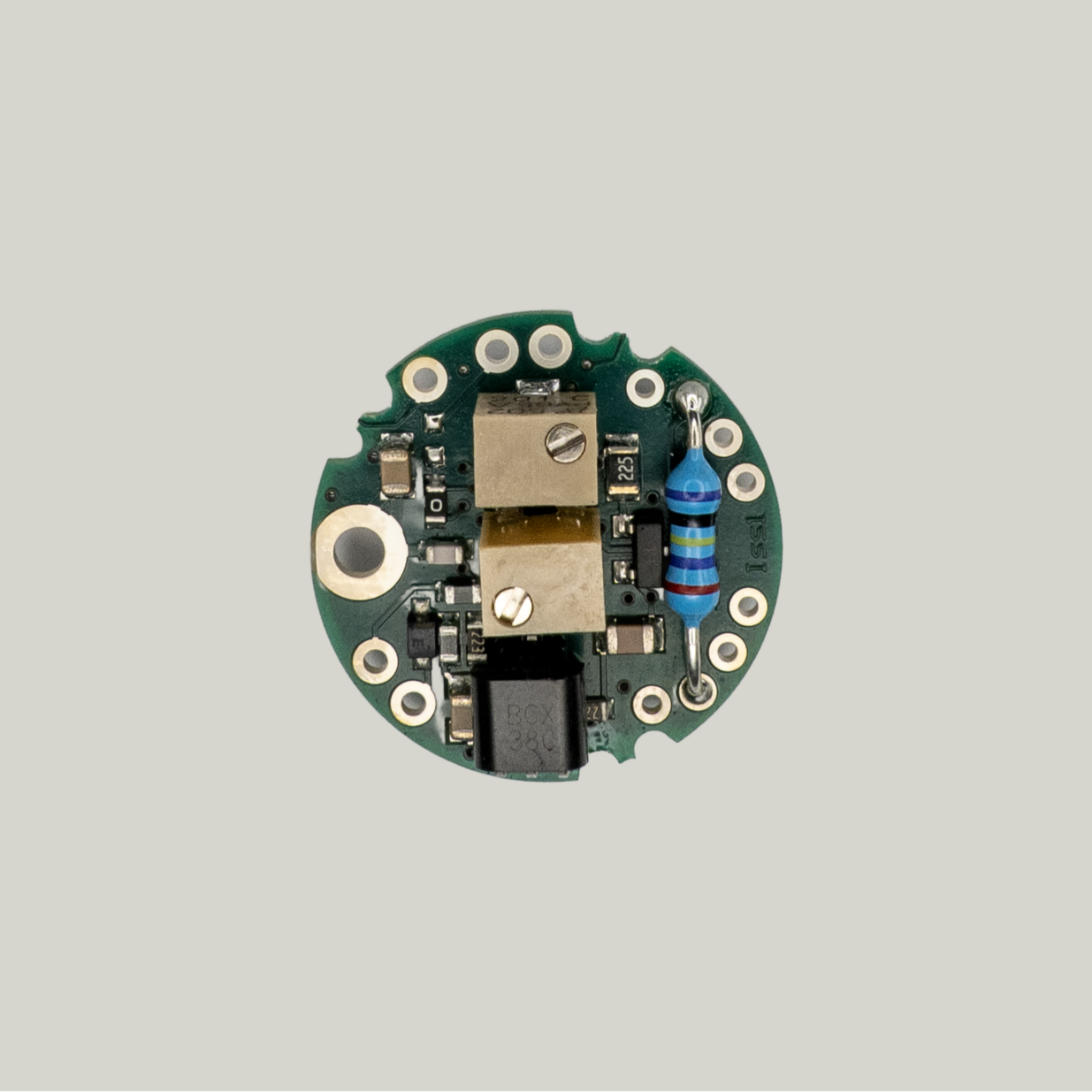

ICA1H – Miniature Strain Gauge Amplifier (0.1–10.1 V Output)
The ICA1H is a high-precision miniature strain gauge amplifier engineered for OEM integration directly into load cells, pressure transducers, and other strain-based sensors. It provides a stable 3-wire voltage output of 0.1–10.1 V, making it ideal for applications that demand high accuracy, wide dynamic range, and signal integrity.
Part of the ICAH range, the ICA1H is designed for very high stability and minimal drift across extended temperature ranges. Its compact format allows for seamless embedding into transducer designs, while advanced filtering ensures excellent EMC performance even in challenging environments.
The ICA range includes:
-

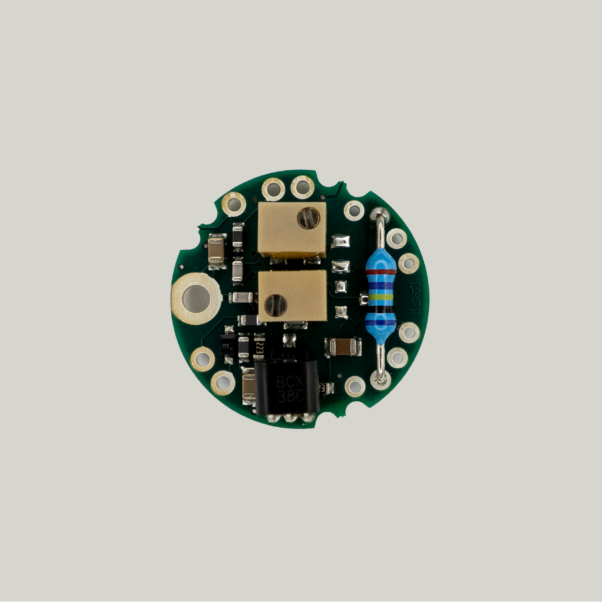

ICA1H, ICA2H, ICA3H, ICA4H, ICA6H – High-performance OEM amplifiers
-
ICA5S – Industrial-grade stability for general-purpose applications
-
ICA5ATEX – Intrinsically safe ATEX-certified version for hazardous area applications
An optional ILE (In-Line Enclosure) allows you to convert a standard sensor into a fully conditioned output device without internal modification.
Product Features & Benefits
- Fits inside sensors, 19.5 mm diameter, 7.6 mm height
- 0.1-10.1 V 3-wire Output
- Non interaction between the trimmers makes calibration fast and easy
- High speed 1000 Hz
- User selectable span resistor
- Robust design, of high noise immunity & reverse polarity protected
- Option of an in-line enclosure
Specifications
Parameter |
Min |
Typ |
Max |
Units |
Notes |
Electrical & Environmental
|
|||||
| Supply Voltage Range | 13 | 24 | 28 | Volts | |
| Operating Current | 22 | mA | With 350 Ohm load cell connected. | ||
| Operating temperature range | -40 | – | 85 | ºC | |
| Storage temperature range | -40 | – | 85 | ºC | |
| Reverse polarity protection
|
-30 | – | – | Volts | |
Measurement
|
|||||
| Bridge excitation | 4.9 | 5 | 5.1 | Volts | |
| Bridge impedance | 350 | 1000 | 5000 | Ohms | |
| Bridge sensitivity | 0.5 | 2.5 | 150 | mV/V | The factory setting is the typical value, with other values possible via an alternate calibration resistor. |
| Output current range | 0.1 | – | +10.1 | Volts | |
| Output load | – | – | 5000 | Ohms | |
| Bandwidth | DC | – | 1000 | Hz | |
| Zero adjustment | – | ±2 | – | %FR | |
| Span adjustment | – | ±8 | – | %FR | |
| Linearity | – | 0.02 | – | %FR | |
| Zero temp stability | – | 0.0004 | 0.0015 | ±%FR/ºC | |
| Span temp stability | – | 0.002 | 0.0051 | ±%FR/ºC |
Environmental
|
|||||
| Storage Temperature | -40 to +85ºC | ||||
| Operating Temperature | -40 to +85ºC | ||||
| Relative Humidity | 95% maximum non condensing | ||||
| CE Environmental Approvals | European EMC Directive 2004/108/EC | ||||
Dimensions
19.5mm x 7.6mm
Downloads
FAQ
| Q | How many load cells can you attach to a ICA? |
| A | One |
