T24 Wireless Telemetry AntennaT24-ANTA, T24-ANTB, T24-ANTC, T24-ANTD, T24-ANTE
Description

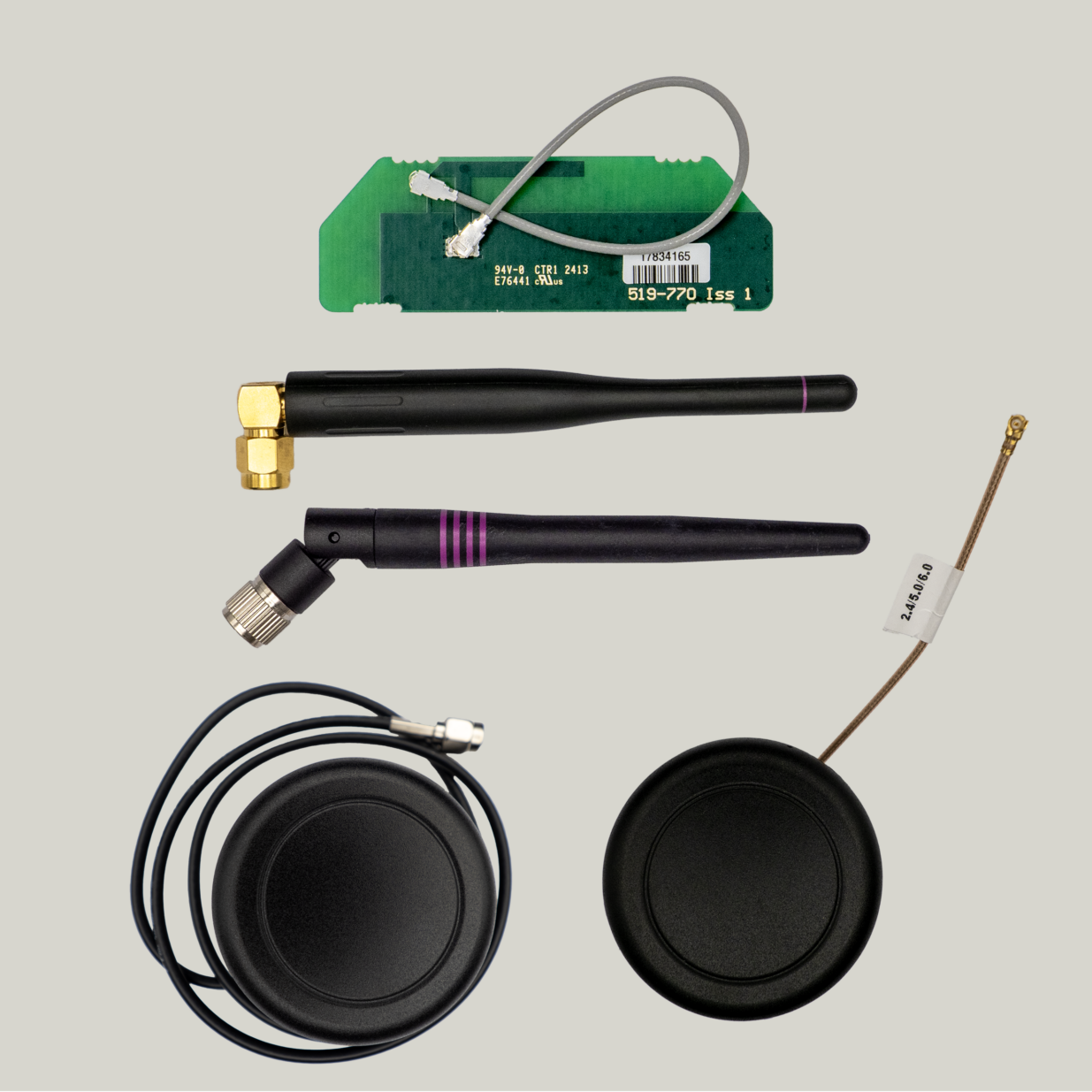

The T24-ANTA, T24-ANTB, T24-ANTC, T24-ANTD, and T24-ANTE are high-quality antenna options designed for use with T24 wireless telemetry modules that feature factory-fitted UFL connectors.
These antennas are compatible with external-antenna variants of transmitter modules such as the T24-SAe, T24-IAe, and T24-VAe, and can also be adapted for use with other T24 modules. For custom integration support or guidance on non-standard configurations, please contact us.
Each antenna is designed to meet specific mechanical and environmental requirements, offering a choice of internal and external mounting styles, cable lengths, and temperature tolerances.

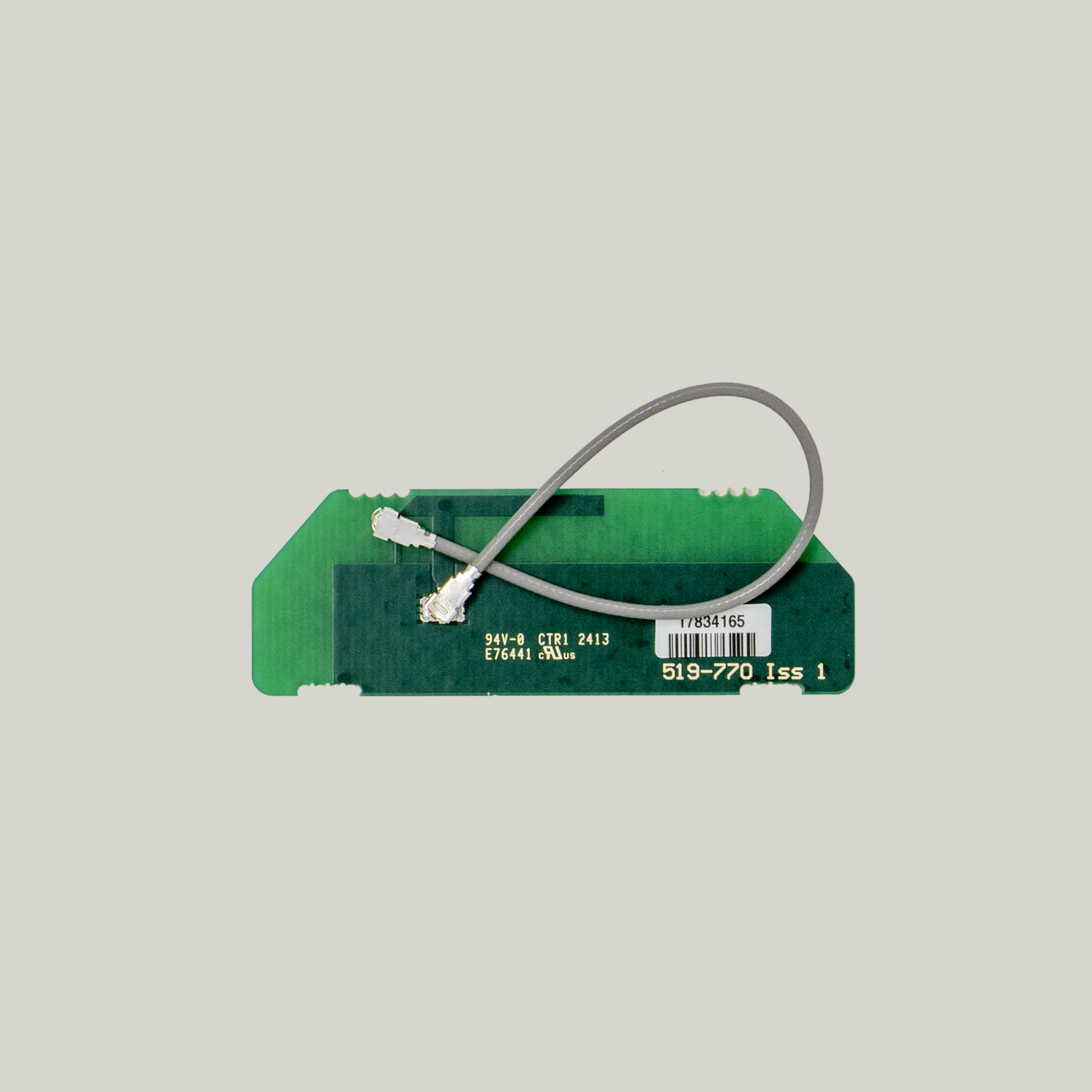

The T24-ANTA is a compact PCB antenna designed for internal use within plastic enclosures. It includes a 100 mm cable with UFL connector, ideal for applications requiring a fully enclosed, low-profile design.

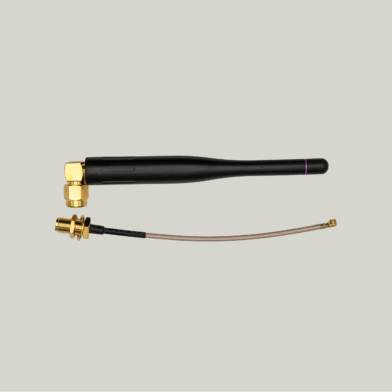

The T24-ANTB is an external whip antenna with a fixed 90° elbow for robust mounting. It is supplied with a 100 mm cable and UFL connector and operates reliably within a temperature range of -20 °C to +85 °C.

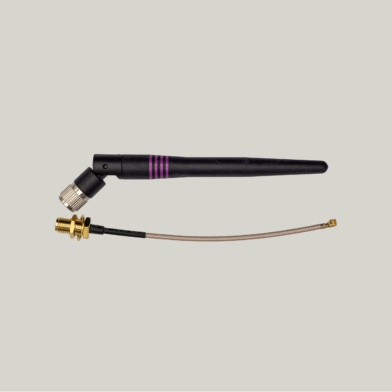

The T24-ANTC features an adjustable-angle whip antenna for flexible mounting orientation. It includes a 100 mm cable and UFL connector, and supports an extended operating temperature range from -40 °C to +90 °C.

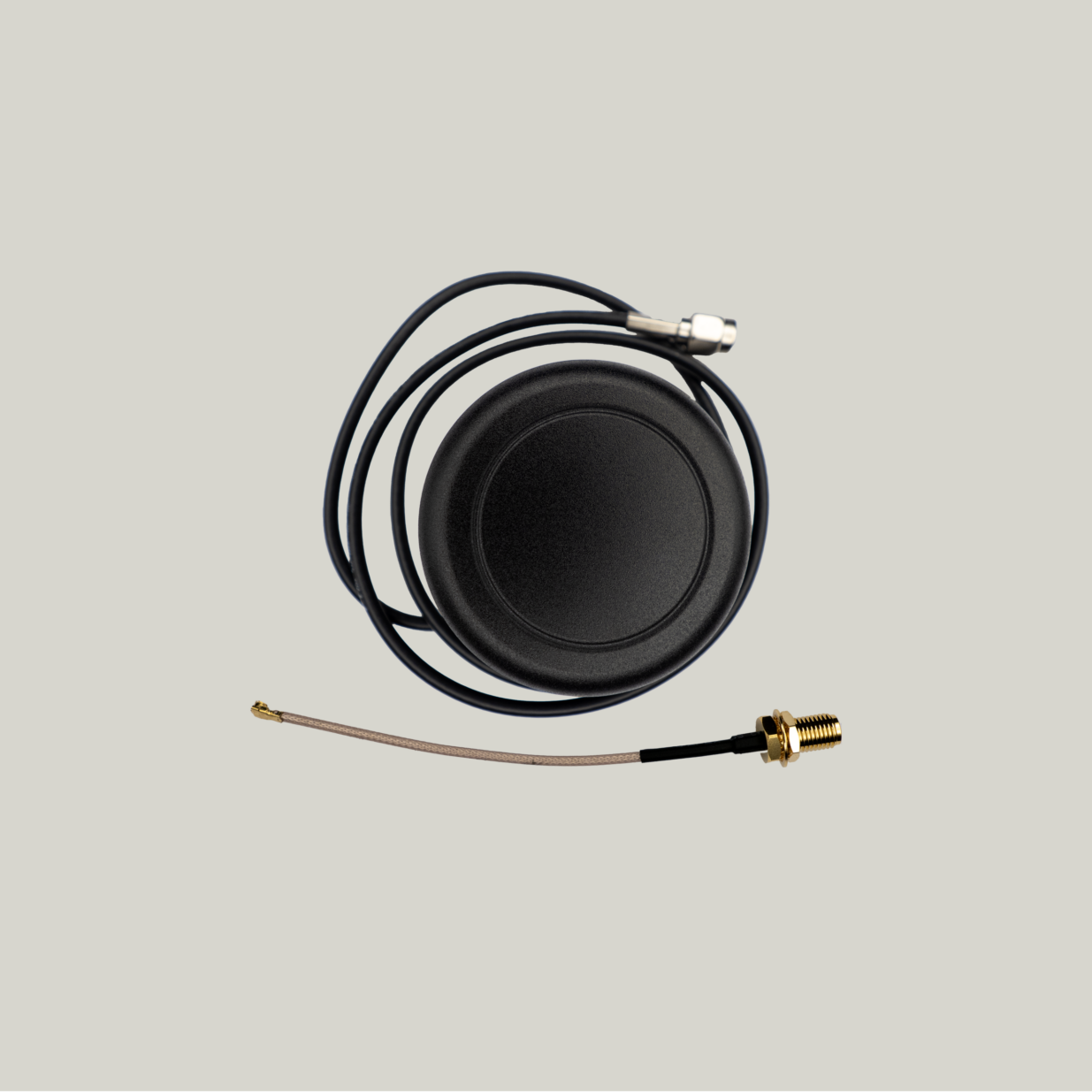

The T24-ANTD is a high-gain ‘puck’ style antenna designed for low-profile external mounting. It is supplied with a 660 mm cable and RPSMA connector, and includes a 100 mm RPSMA-to-UFL adapter cable for compatibility with T24 modules.

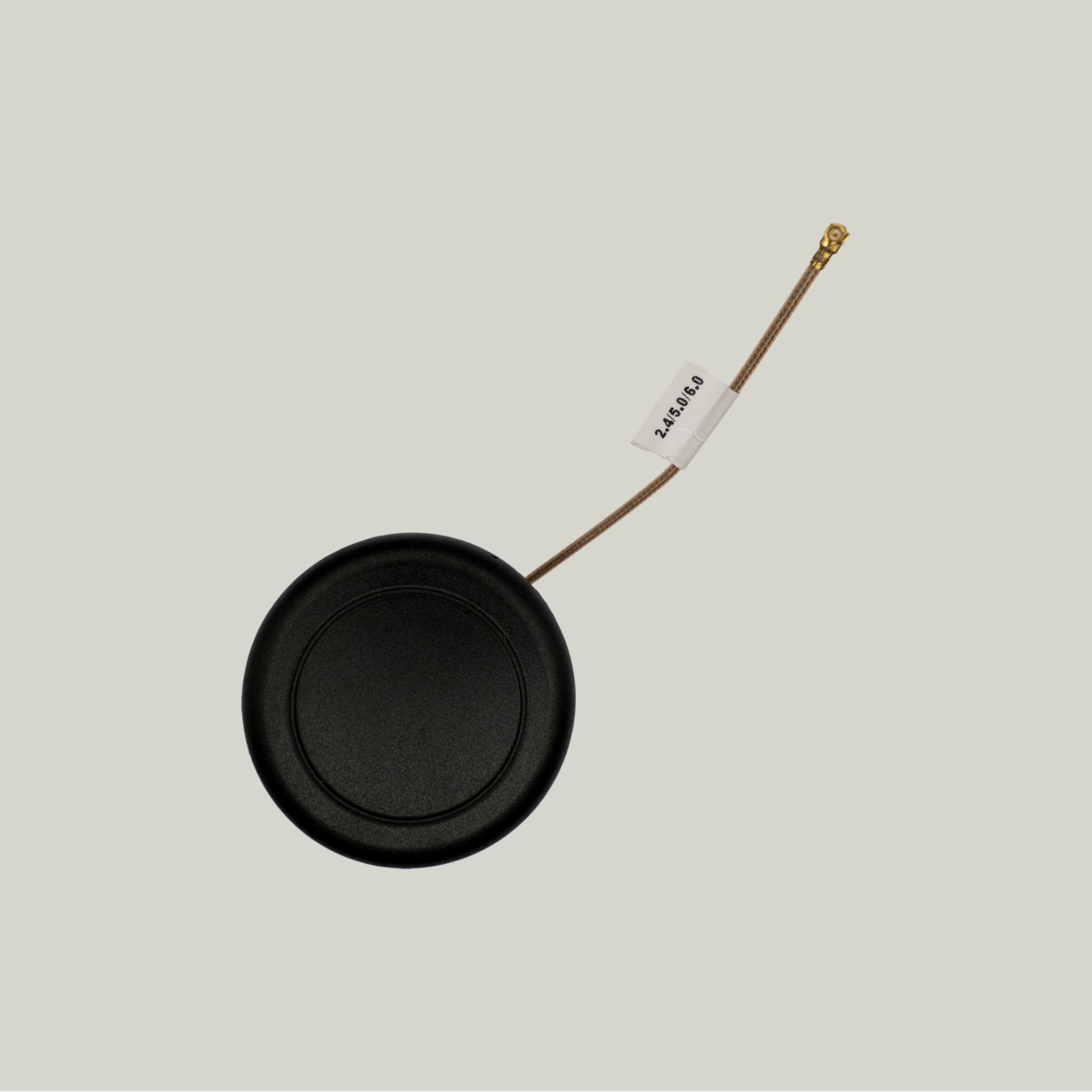

The T24-ANTE is a variant of the puck antenna, supplied with a 100 mm cable and UFL connector, offering the same high gain and low-profile form factor for direct integration with compatible telemetry modules.
For best performance, antenna selection should be based on the required mounting conditions, environmental constraints, and transmission range requirements.
Product Features & Benefits
-
T24-ANTA
– Internal PCB antenna for use inside plastic enclosures
– 100 mm cable with UFL connector
– Compact, low-profile design -
T24-ANTB
– External whip antenna with fixed 90° elbow
– 100 mm cable with UFL connector
– Recommended temperature range: -20 °C to +85 °C -
T24-ANTC
– External whip antenna with variable-angle elbow
– 100 mm cable with UFL connector
– Extended temperature range: -40 °C to +90 °C -
T24-ANTD
– External puck-style antenna with low-profile design and high gain
– 660 mm cable with RPSMA connector
– Includes 100 mm RPSMA-to-UFL adapter cable -
T24-ANTE
– External puck-style antenna with low-profile design and high gain
– 100 mm cable with UFL connector
Specifications
ANTENNA COMPARISON
| Order codes | T24-ANTA | T24-ANTB | T24-ANTC | T24-ANTD | T24-ANTE |
| Module size (L x W): | 58 mm x 20 mm | 98 mm x 19 mm | 113 mm x 28 mm (max) | 53 mm (diameter) x 19 mm (high) | 53 mm (diameter) x 19 mm (high) |
| Antenna type: | Inverted F Printed circuit antenna | 1/2 wave dipole | 1/2 wave dipole | Inverted F Printed circuit antenna | Inverted F Printed circuit antenna |
| Antenna style: | Printed circuit board | Fixed whip | Whip with Articulated Base | Puck | Puck |
| Gain: | 3.0 dBi | 1.1 dBi | 2.2 dBi | 3.0 dBi | 3.0 dBi |
| Connection: | 100 mm Cable | 100 mm Cable | 100 mm Cable | 660 mm | 100 mm |
| Connector type: | UFL | UFL | UFL | UFL/SMA | UFL |
| Mounting dimensions: | N/A | 6.4 mm diameter hole | 6.4 mm diameter hole | 10 mm diameter hole | 10 mm diameter hole |
| Radio frequency: | 2.4 GHz | 2.4 GHz | 2.4 GHz | 2.4 GHz | 2.4 GHz |
| Transmit power: | 10 mW | 10 mW | 10 mW | 10 mW | 10 mW |
| Operating temperature: | -20 °C to +55 °C | -20 °C to +55 °C | -20 °C to +55 °C | -20 °C to +55 °C | -20 °C to +55 °C |
| Storage temperature: | -40 °C to +85 °C | -40 °C to +85 °C | -40 °C to +85 °C | -40 °C to +85 °C | -40 °C to +85 °C |
| Environmental protection: | OEM Board | IP67 | IP67 | I P69K (when correctly fitted) | I P69K (when correctly fitted) |
Dimensions
| Order codes | T24-ANTA | T24-ANTB | T24-ANTC | T24-ANTD | T24-ANTE |
| Module size (L x W): | 58 mm x 20 mm | 98 mm x 19 mm | 113 mm x 28 mm (max) | 53 mm (diameter) x 19 mm (high) | 53 mm (diameter) x 19 mm (high) |
Downloads
FAQ
| Q | What is the difference between the ANTB and ANTC? |
| A | The T24-ANTB is a whip antenna with a fixed 90 deg elbow, designed for mounting externally. The T24-ANTC has a variable angled elbow. |
