Digital temperature sensor module for DCell / DSCDTEMP
£13.00
Description

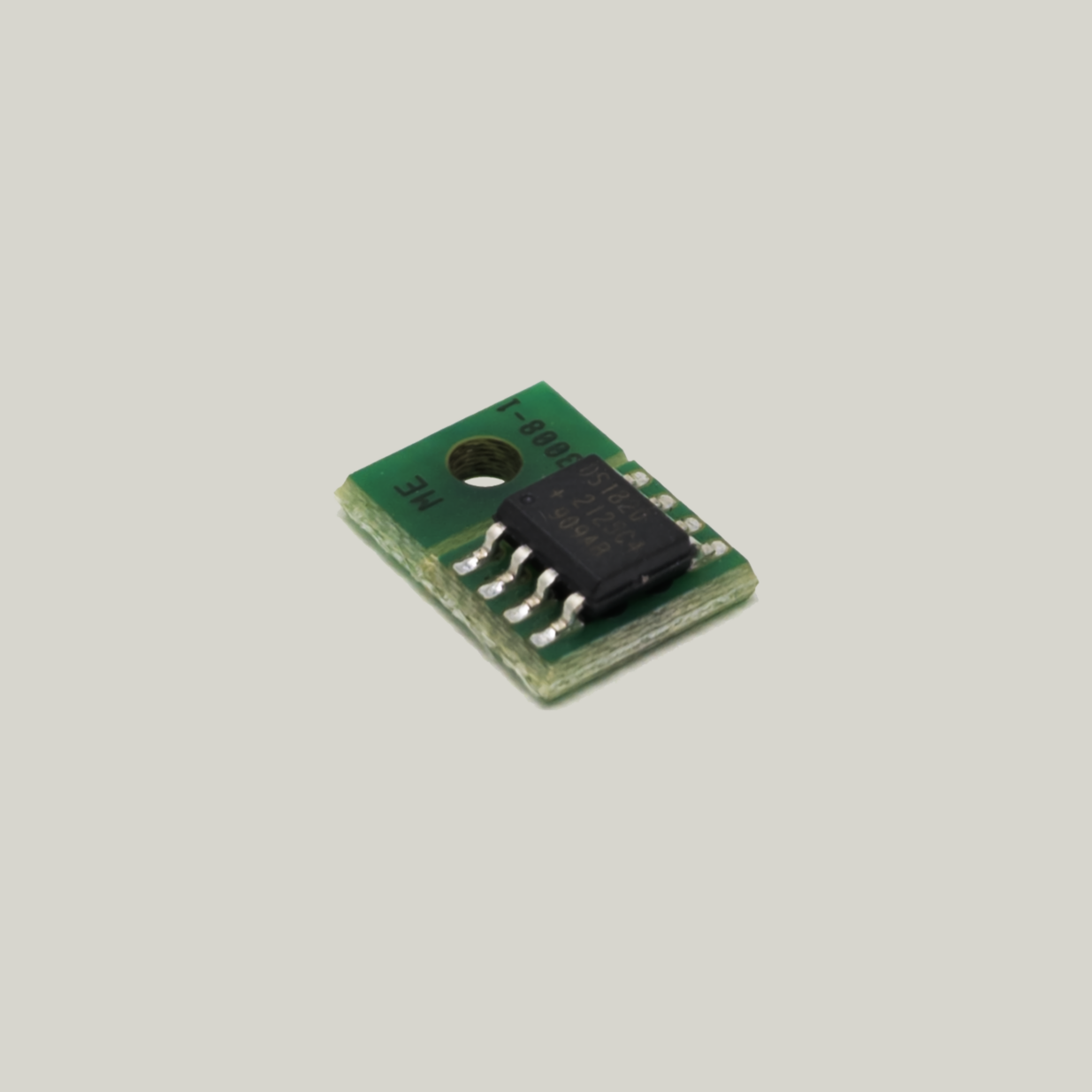

The DTEMP is a compact digital temperature sensor designed for direct connection to Mantracourt’s DCell and DSC signal conditioners. Supplied as a small double-sided PCB with an 8-pin SOIC IC, it mounts directly to the load cell body via a 2 mm fixing hole to ensure excellent thermal contact between the sensor and the strain gauges.
With two solder pads for simple wiring, the DTEMP provides accurate temperature feedback to enable advanced temperature compensation during calibration. For best performance, a shielded twisted pair cable (up to 10 m) is recommended, with the shield bonded to the load cell body or SH connection on DSC modules.
This module is essential where stable and reliable strain gauge measurement is required across changing temperature environments.
Product Features & Benefits
-
Designed for use with DCell and DSC signal conditioners
-
Small double-sided PCB with 8-pin SOIC temperature sensor IC
-
2 mm fixing hole allows secure mounting to the load cell body
-
Ensures the sensor and strain gauges share the same thermal environment
-
Two solder pads for straightforward connection to the signal conditioner
-
Supports shielded twisted pair cable up to 10 m
-
Shield connection to load cell body or SH terminal (DSC) recommended
-
Provides accurate temperature feedback for compensation in measurement systems
Specifications
| Parameter | Typical | Units |
|---|---|---|
| Measurement Resolution | 0.0625 | °C |
| Measurement Accuracy (-10 to 85) | 0.5 | °C |
| Measurement Accuracy (-55 to 125) | 2.0 | °C |
| Update Speed | 5 | Seconds |
Dimensions
10.5mm x 7.6mm x 2.5mm (0.413 x 0.299 x 0.098”).
