In-line Strain Gauge / Load Cell Amplifier Programmer – IP54 Cased VersionILA-PGMD-A
SKU: ILA-PGMD-A
Description

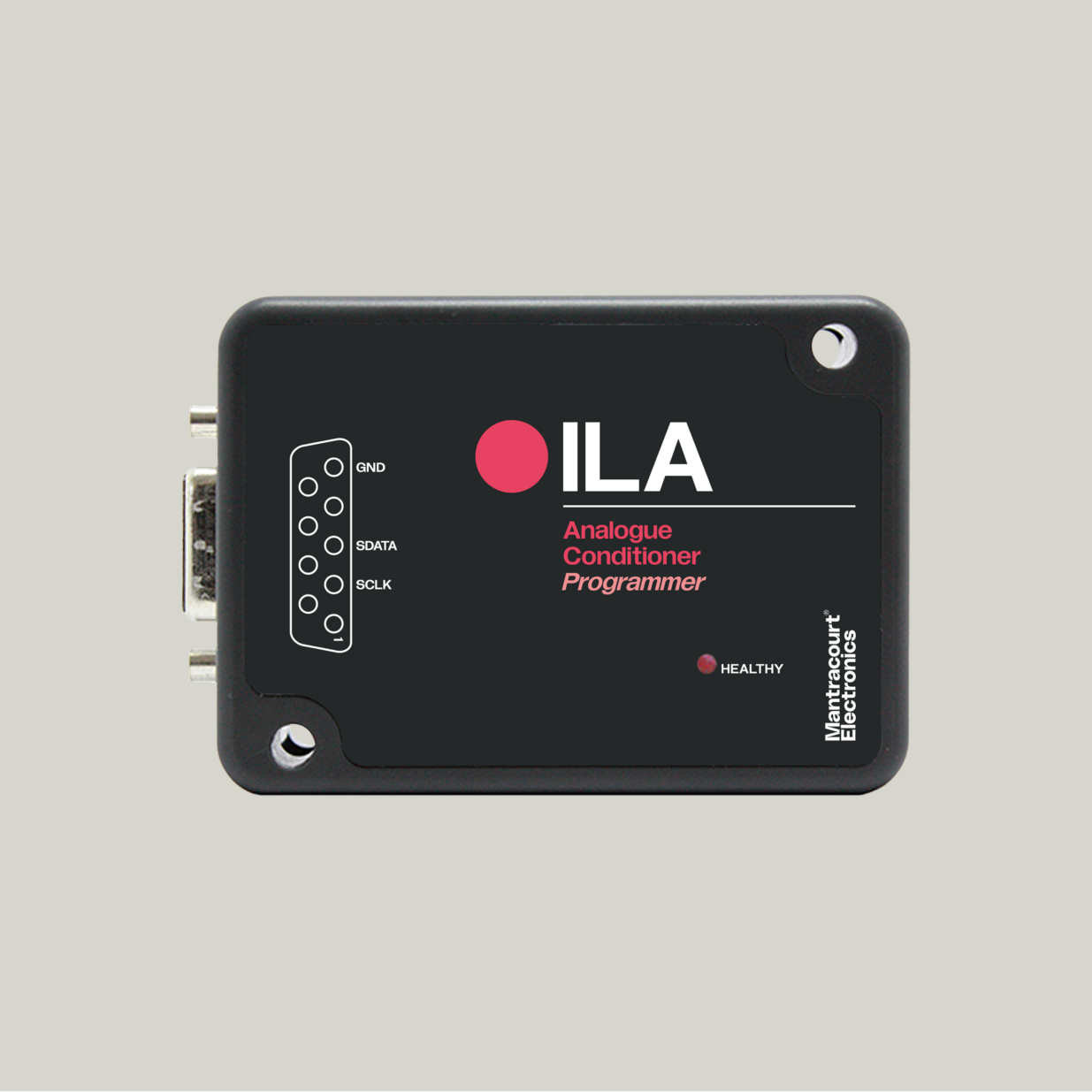

The Mantracourt ILA-PGMD-A Load Cell Amplifier Programmer is a versatile tool designed for efficient setup and configuration of The ILA load cell amplifier.
ILA-PGMD-A offers precise calibration and easy adjustment of the ILA with its included programming and USB cables.
Gain and offset calibration are handled by a dual 256-step non-volatile digital potentiometer, enabling fast, semi-automatic calibration when used with the ILA Toolkit, which is available for free download.
With its user-friendly interface and robust design, the ILA-PGMD-A is the ideal solution for engineers and technicians working with load cells in industrial environments.
Product Features & Benefits
- Quick setup & semi-automatic calibration of ILA units in conjunction with free Toolkit software
- IP54 rated Case
- OEM Option Avaliable

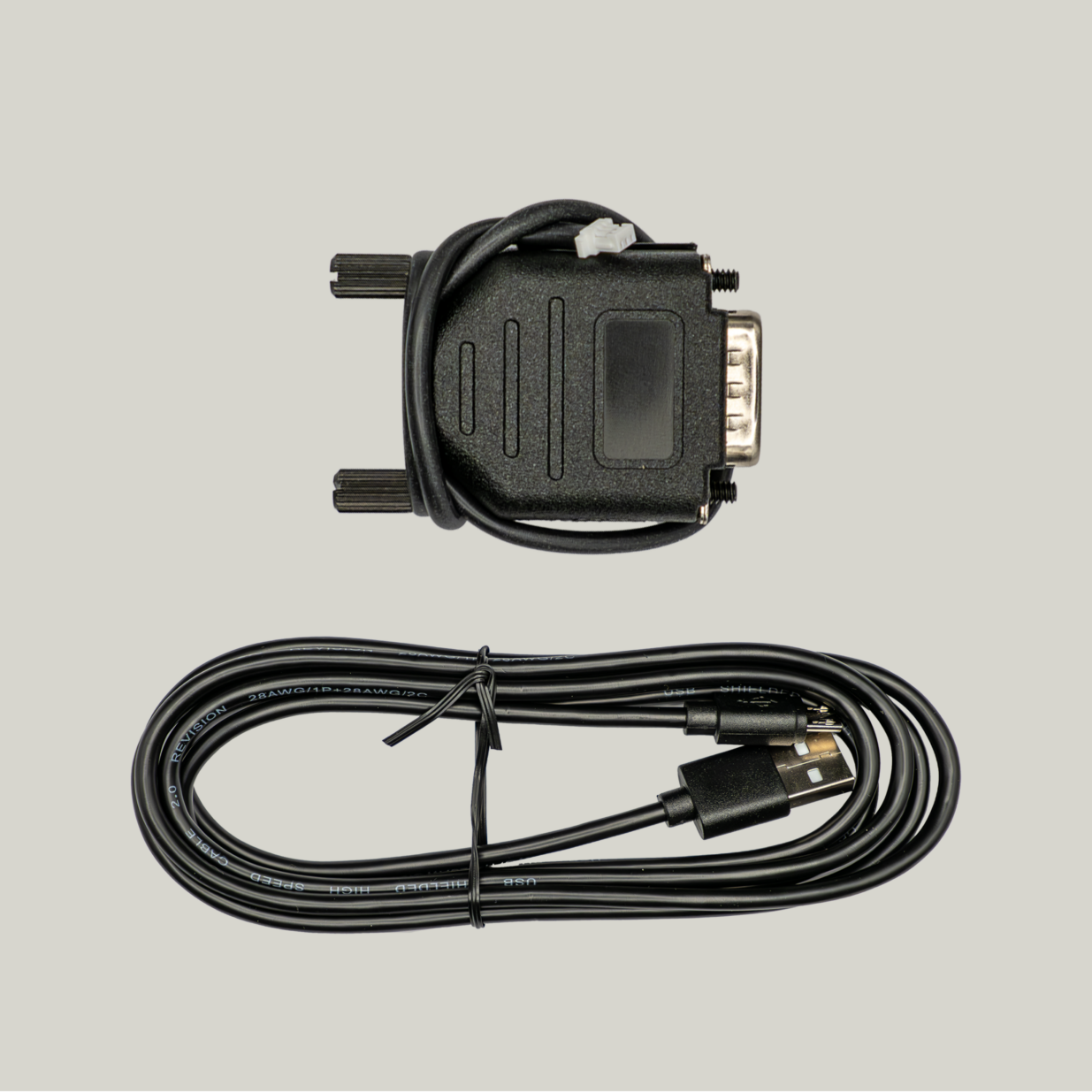

- Includes programming lead and USB Cable.
Specifications
Environmental
|
||
| Supply Voltage Range | 9 to 32 V (note 1) | For 12 V operation the maximum receiver input impedance is 400 ohms. Operation at lower supply voltages is possible but limited by receiver’s input impedance e.g. for operation at 10 V the receiver’s input impedance should not exceed 250 ohms or 150 ohms for 8 V operation |
| Operating Current | 8 mA (note 2) | Not including excitation current and output current e.g. when connected to a 350 Ohm load cell:- Total current = Operating current (8mA) + Excitation current (5/350 = 14mA) + Output current (20 mA FS) = 42 mA FS (typical). |
| Operating temperature range: | -40 to 85 ºC | |
| Storage temperature range | -40 to 85 ºC | |
| Reverse polarity protection (power supply, input and output connections) |
-30 V | |
| IP Rating
|
IP54 | |
Approvals
|
||
| LVD Directive | 2014/35/EU | |
| EMC Directive | 2014/30/EU | |
| RoHS Directive | 2011/65/EU |
Dimensions
75 mm x 50 mm x 20 mm
Downloads
FAQ
| Q | How do I power the ILA? |
| A | You will require a power supply of 9-32 DC |
| Q | How do I calibrate the ILA? |
| A | Digital trim pots allow for quick semi-automatic calibration which is available via use of the programmer (ILA-PGMD-A) and free Toolkit. Note the cable (ILA-CAB-A) is included with the programmer. |
| Q | How do I get the software for the ILA? |
| A | The free ILA Toolkit software is downloadable from the Mantracourt website |
| Q | Is the ILA available as an OEM PCB board option as well? |
| A | Yes, both the ILA and programmer are available as OEM (uncased) versions. |
| Q | What is the warranty period on this device? |
| A | The ILA from Mantracourt Electronics Ltd., (‘Mantracourt’) is warranted against defective material and workmanship for a period of one (1) years from the date of dispatch. |
| Q | What are the dimensions of the cased ILA? |
| A | 84 mm x 27.5 mm x 17.5 mm |
| Q | Can I customise the sensitivity, bandwidth and offset trim range? |
| A | Yes, these are all customisable options although a MOQ of 72 applies to a customised version (and then susequent units of 24). The standard version is 2.5 mV/V (sensitivity), DC to 10 kHz (bandwidth), ±2 %FR (offset trim range), ±8 %FR (span) |
| Q | What is the IP rating |
| A | IP54 |
| Q | Does this device offer EMC filtering? |
| A | Yes, the ILA offers extensive filtering to reduce noise for safe and reliable operation. |
| Q | What temperature will the ILA work in? |
| A | Operating temperature range: -40 to 85 ºC ​Storage temperature range: -40 to +85 ºC |
| Q | Â Is there reverse polarity protection? |
| A | Yes, as well as short circuit protection, input and output protection. |
| Q | What output is created from the ILA? |
| A | A high stability 4-20 mA output. |
| Q | Is customised branding available with the ILA? |
| A | Yes, it can be branded. Mantracourt will provide the supplier details for custom labels. |
| Q | How many load cells can be attached to the ILA? |
| A | Four 1500 ohm load cells |
| Q | Â Is the ILA low power? |
| A | Typical current drain with a 350 ohm load cell is approximately 42 mA at full scale.
e.g. when connected to a 350 Ohm load cell:- |
| Q | Can I write my own software to calibrate the ILA? |
| A | Yes, there are drivers and instructions available to help with this. I2C, Dot Net drivers and virtual com port. |
| Q | What size cables can be used with the ILA? |
| A | The grommets cater for cable diameters between 4 to 6 mm. Smaller diameter cables can be used at the expense of effective dust and particle sealing. |
