PCB Mount Board for a Single DSCDSJ1
£107.00
Description
The function of the DSJ1 is to enable the easy connection of a load cell and a DSC Card for communications to a PC or PLC.

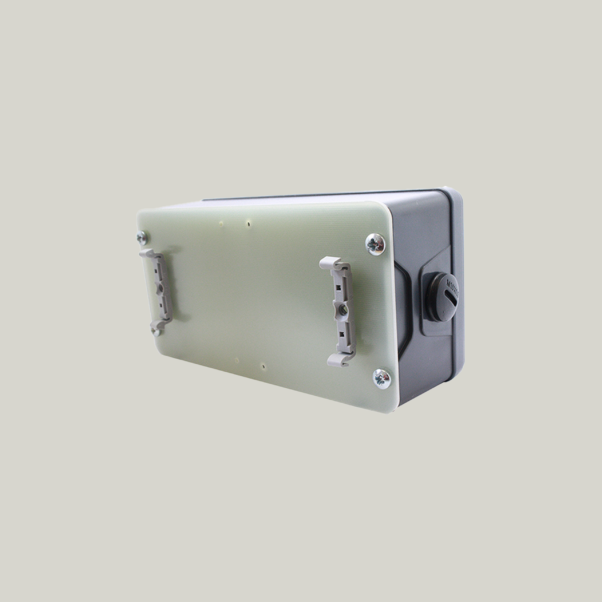

Supplied as an OEM device on a single 135 x 73mm PCB, it has options for fitting in an IP65 ABS Case, or to a DIN rail fixture.

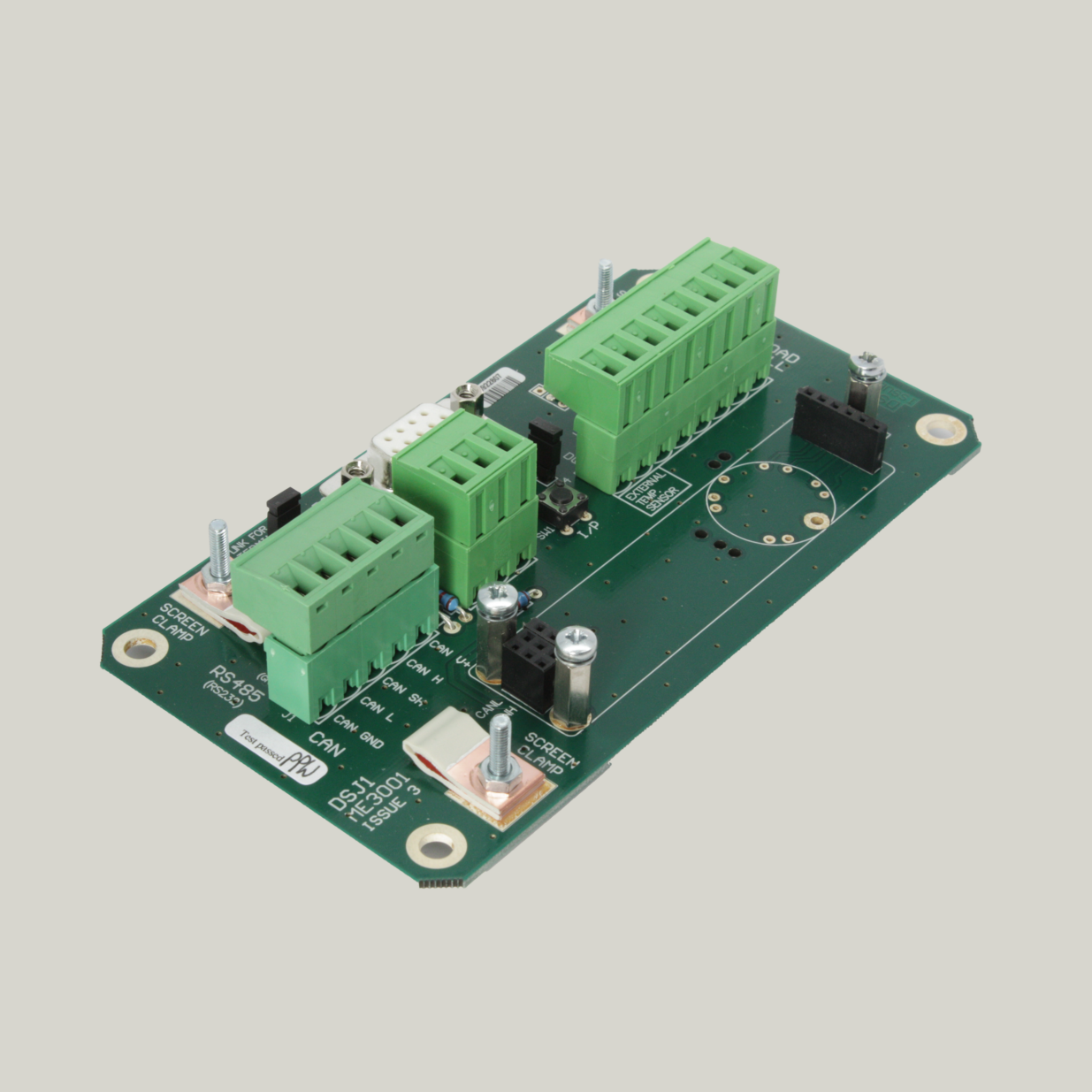

When a DSC card or DCell is fitted to the DSJ1 PCB it will enable the connection of a load cell via a two-part connector, with a five-way two-part connector for the communications output and a D type 9 pin connector, as well as connections for digital inputs and outputs and external temperature sensor. The communications output connection is RS232, RS485 or CAN depending on the DSC unit used.
The three components (DSC + DSJ1 + Case) can be provided pre-assembled and ready for use if ordered at the same time.
Product Features & Benefits
- Bus connections for communication and power supply
- 2 part connectors for field terminals
- D type 9 pin connector for easy RS232 connection
- Green LED power indicator
- Red LED digital output indicator
- Push switch to simulate digital input
- Option to terminate bus through 120 ohm resistor
- CAN compliant option
- 3 x screen clamps for EMC termination
- Choose & add the DSC digital strain card required to fit onto the DSJ1
Specifications
| Environmental | |
|---|---|
| Storage temperature | – 40 to +85ºC |
| Operating temperature | – 40 to +85ºC |
| Relative humidity | 95% maximum non condensing |
| European EMC Directive | 2004/108/EC |
| Low Voltage Directive | 2006/95/EC |
| DSJ1 | |
|---|---|
| Connection | 1 x 8 way 2 part terminal for load cell and temperature sensor connections (2.5mm² cable max) 1 x 5 way 2 part terminal for Digital Data and Power (2.5mm² cable max) 1 x 3 way 2 part terminal for DSC digital I/O 1 x 9 way D type connector for digital data |
| Dimensions | 135 x 73 x 18mm PCB only |
Dimensions
122mm x 58 mm
Downloads
FAQ
| Q | Which protocols with work with the DSJ1? |
| A | RS232, RS485 ASCII, Modbus, CAN, CANopen® & CAN J1939 |
