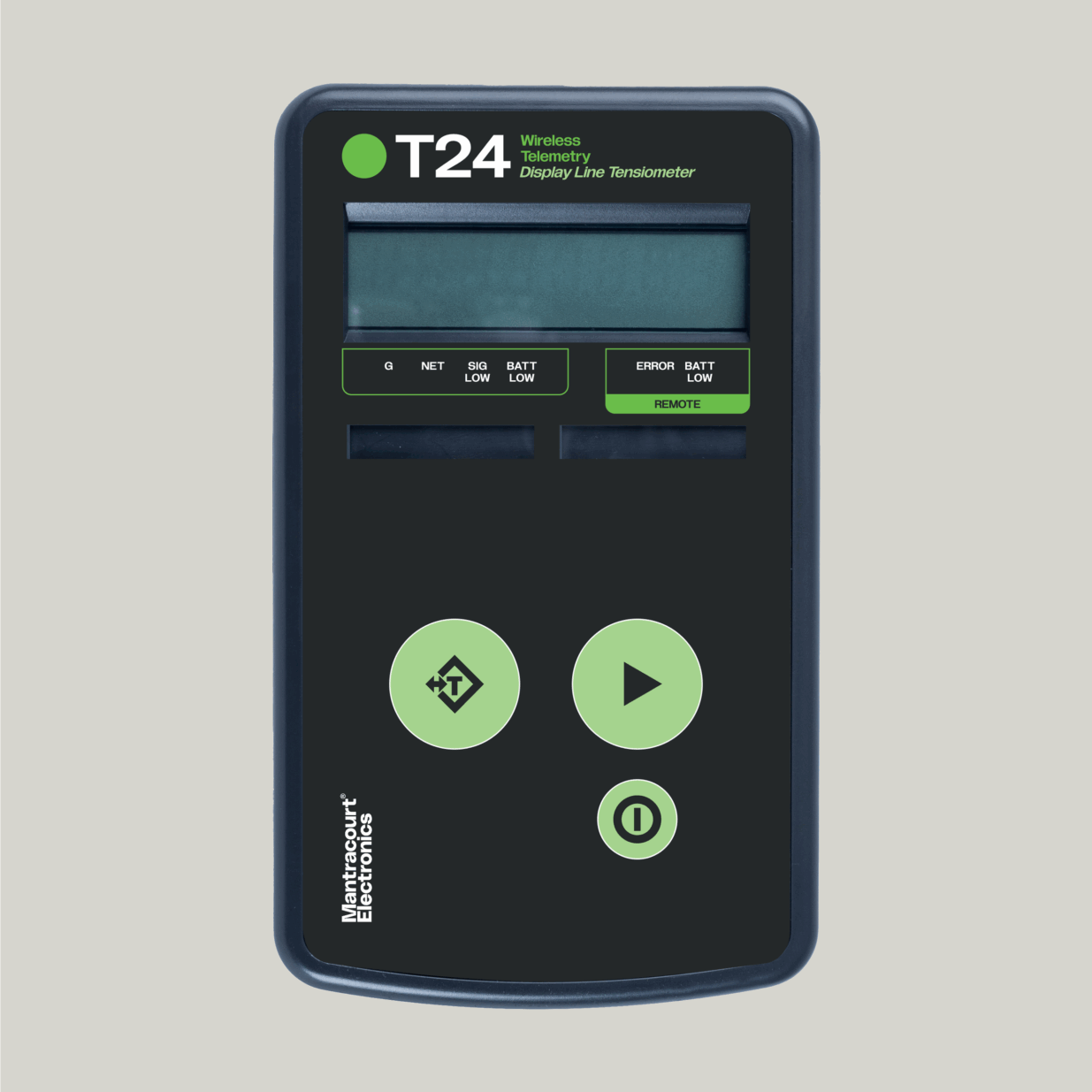

Wireless Portable Display Receiver handheld for Line TensiometerT24-HLT
SKU: T24-HLT
Description
The T24-HLT is a dedicated wireless handheld display designed specifically for use with the T24-LT1 Wireless Running Line Tensiometer module, providing clear and reliable real-time readings of tension, line payout, and speed. Compact, portable, and battery-powered, it is ideal for dynamic cable handling environments such as winching, rigging, and marine operations.
Powered by two standard AA batteries, the T24-HLT supports ultra-low power operation and delivers up to 12 days of continuous use at a transmission rate of 3 readings per second. Its robust wireless communication ensures dependable performance, even in challenging and demanding field conditions.
The T24-HLT is designed for simplicity and reliability, offering a direct, dedicated connection to a single T24-LT1 module, ensuring accurate data display with minimal setup.
Please note: The T24-HLT remains available but has been superseded by the T24-HK-S — a next-generation handheld display that retains all the features of the T24-HLT while adding enhanced display capabilities, expanded configuration options, and multi-transmitter support. For new installations, the T24-HK-S is recommended.
Typical Applications
-
Cable tension monitoring for winching and lifting operations
-
Marine and offshore running line tension monitoring
-
Rigging applications requiring live tension, speed, and payout data
-
Portable, field-based monitoring systems
Key Features
-
Displays real-time tension, line payout, and speed from a T24-LT1 module
-
Compact, portable, and easy to use in demanding environments
-
Powered by two AA batteries, offering up to 12 days of continuous operation
-
Ultra-low power design with 3 readings per second
-
Reliable wireless performance for dynamic cable handling
-
Superseded by the T24-HK-S for advanced features and multi-transmitter compatibility
Product Features & Benefits
-
Dedicated wireless handheld display for use with the T24-LT1 Wireless Running Line Tensiometer
-
Provides real-time display of tension, line payout, and speed
-
Simple, intuitive operation for quick field use
-
Wireless range up to 800 m (½ mile) line-of-sight
-
Audible warnings and feedback for enhanced usability
-
Powered by two AA batteries with up to 12 days of continuous operation
-
Long battery life with ultra-low power consumption (3 readings per second)
-
Tare/Zero/Gross function for measurement flexibility
-
Ability to remotely sleep/wake connected T24 acquisition modules
-
User-controlled backlight for improved readability in low light conditions
-
Automatic shut down to conserve power
-
Sealed to IP67 within a robust handheld enclosure for demanding environments
-
Reliable wireless coverage designed for marine, winching, and rigging operations
-
Supplied pre-configured for easy deployment
-
Remains available but superseded by the T24-HK-S handheld display, which adds advanced configuration, improved display, and multi-transmitter support
Specifications
| Environmental | |
|---|---|
| Operating temperature range | -10 to 50 ºC |
| Storage temperature range (no batteries) | -40 to 85 ºC |
| Maximum humidity | 95% RH |
| Environmental protection with suitable cables existing through cable glands | IP67 / Nema4 |
| Power Supply | |
|---|---|
| Internal batteries | 2.5 to 3.6 Vdc |
| 2 off AA 1.5V primary cells |
| Battery Life | |
|---|---|
| Based on Energizer L91 batteries | |
| Continuous operation | 54 hours |
| Standby mode (powered off) | > 5 Years |
| Radio | |
|---|---|
| Radio type | Licence exempt transceiver |
| Radio frequency | 2.4 GHz |
| Transmit Power | 10 mW |
| Range | Up to 800 m |
Dimensions
90mm X 152mm X 34mm
Downloads
FAQ
| Q | Do the T24-LT1 and T24-HLT operate exclusively? |
| A | The T24-LT1 is compatible with other T24 receivers, but the T24-HLTÂ has been specifically designed to allow the 3Â measurements values transmitted by the T24-LT1. |
| Q | What Frequency does the system operate on? |
| A | The T24-LT1 connects to a load pin and quadrature sensor. |
| Q | What is the range of T24? |
| The T24-ACMm which has an integral antenna has a range of 400 metres direct line of sight. The T24-ACM / T24-ACMi uses a integrated PCB T24-ANTA antenna provides up to 800 metres range in ideal conditions. This range can be increased up to two times with the T24-AR (wireless range extender). |
| Q | What is the battery life of the handheld? |
| A | 54 hours continuous operation. |
