Wireless Sensor Transmitter Line Tensiometer AcquisitionT24-LT1 OEM Module
SKU: T24-LT1 OEM Module
Description
The T24-LT1 is a versatile wireless OEM telemetry module designed for integration into running line tensiometer systems. When paired with appropriate mechanical hardware, it enables the real-time acquisition of cable tension, payout, and speed — critical parameters for dynamic load monitoring in industries such as marine, offshore, and rigging.
Developed on the proven foundation of the T24-SA strain acquisition module, the T24-LT1 provides high-accuracy load pin measurement and can be calibrated and scaled directly into engineering units such as kilograms or kilonewtons. This version requires integration with a suitable external antenna, which provides enhanced wireless range and signal integrity, particularly in challenging or obstructed environments.

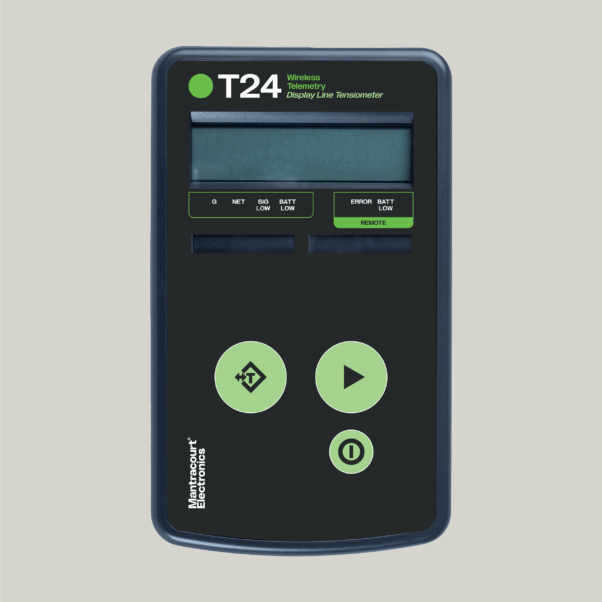

The T24-LT1 was originally designed to work alongside the T24-HLT handheld display, providing a portable solution for viewing tension, payout, and line speed. While the T24-HLT remains available, it has been superseded by the T24-HK-S, a next-generation handheld display offering improved configurability, enhanced visualisation, and greater system flexibility. For all new installations, the T24-HK-S is recommended as the preferred display option.
Operating on the licence-free 2.4 GHz DSSS frequency band, the T24-LT1 offers reliable, interference-resistant wireless communication and is fully compatible with the complete T24 ecosystem, including base stations, analogue outputs, relay modules, and logging interfaces. Configuration, scaling, and calibration are performed wirelessly using the free T24 Toolkit software.
Typical Applications
-
Running line tensiometers for marine and offshore operations
-
Dynamic cable tension monitoring in winching and rigging applications
-
Monitoring of payout and line speed in lifting or pulling systems
-
OEM integration into customised cable management or load monitoring solutions
Module transmits and receives, offering:
-
High-accuracy load pin signal acquisition with engineering unit scaling
-
Full error detection and correction for reliable data transmission
-
Wireless configuration and calibration via T24 Toolkit software
-
Requires integration with a suitable external antenna for optimal range
-
Compatibility with T24 handheld displays, base stations, and output modules
-
Optimised performance for running line tension, payout, and speed measurements
Maximum range achieved in open field site with the T24-LT1 and a T24 handheld display mounted at a height of 3 metres (9.8 feet) above ground. Specification at 3V supply at 25°C.
Product Features & Benefits
-
Provides load (tension), pay-out, and speed measurements in real time
-
Accurate measurement updates 3 times per second
-
Wireless range up to 800 m (2,600 ft) with suitable external antenna
-
Low power mode for efficient long-term operation
-
Simple connection to a quadrature sensor for line movement tracking
-
Miniature PCB design for easy OEM integration into running line tensiometers
-
Compatible with dedicated handheld displays, originally the T24-HLT and now the T24-HK-S (recommended)
-
External antenna options available to ensure optimal signal strength and full 800 m range
-
Built on the proven T24-SA strain acquisition technology with engineering unit scaling
-
Fully configurable via the free T24 Toolkit software
-
Operates on licence-free 2.4 GHz DSSS radio for reliable, interference-free communication
Specifications
| Measurement Specifications | |
|---|---|
| Strain gauge excitation system | 4 wire |
| Strain gauge excitation | 5 Vdc |
| Strain gauge resistance (min) | 85 Ω |
| Strain gauge sensitivity (max) | ±3.2 mV/V |
| Offset temperature stability (maximum) | 4 ppm/ºC |
| Gain temperature stability (maximum) | 5 ppm/ºC |
| Non linearity before linearization (max) | 25 ppm of FR |
| Internal resolution/Bits | 16,000,000 / 24 |
| Noise free resolution/Bits at 1 sample per second | 400,000/18.75 |
| Quadrature inputs type | Volt free |
| Maximum Pulse Frequency | 25Hz (1500 rpm) |
| Minimum Pulse frequency | 0.5Hz (30 rpm) |
| Environmental | |
|---|---|
| Operating temperature range | -20 to 55 ºC |
| Storage temperature range (no batteries) | -40 to 85 ºC |
| Maximum humidity | 95%RH |
| Environmental protection | N/A (OEM Board) |
| Power Supply | |
|---|---|
| 2.1 to 3.6 Vdc |
| Battery Life, Based on transmitting results at 3 per second , 350R strain bridge | no excitation required |
|---|---|
| Pair AA cells constantly on | 12 Days |
| Pair AA cells 12 sessions per day of 5 mins | 290 Days |
| Radio | |
|---|---|
| Radio type | Licence exempt transceiver |
| Radio frequency | 2.4 GHz |
| Transmit power | 10 mW |
| Range | Up to 800 m |
| Antenna | External |
Dimensions
37.5mm x 16.8mm x 6.6mm
Downloads
FAQ
| Q | Do the T24-LT1 and T24-HLT operate exclusively? |
| A | The T24-LT1 is compatible with other T24 receivers, but the T24-HLT has been specifically designed to allow the 3 measurements values transmitted by the T24-LT1. |
| Q | How is the T24-LT1 connected? |
| A | The T24-LT1 connects to a load pin and quadrature sensor. |
| Q | What wire configuration does the T24-LT1 require? |
| A | Strain gauge connection is 4 wire. |
| Q | What Frequency does the system operate on? |
| A | Licence free world wide 2.4GHz, although this frequency is used by other equipment, the T24 range has been tested with Bluetooth, Zigbee & WiFi devices without conflicts. |
| Q | What is the range of T24? |
| A | The T24-ACMm which has an integral antenna has a range of 400 metres direct line of sight. The T24-ACM / T24-ACMi uses a integrated PCB T24-ANTA antenna provides up to 800 metres range in ideal conditions. This range can be increased up to two times with the T24-AR (wireless range extender). |
