Wireless Sensor Transmitter Temperature AcquisitionT24-TA OEM Module
Description
The T24-TA OEM wireless temperature sensor transmitter is a high performance device designed for OEM integration for the collection and processing of temperature measurements. The wireless sensor transmitter requires an external platinum temperature sensor (Pt100 type 385).
T24 transmitters have been designed for battery operation and support an ultra low-power sleep mode whilst offering class leading wireless coverage and range. Configurable transmission rates from once per day to 200 per second cope with a wide range of measurement and monitoring applications.
A choice of enclosures enabling battery connection, field connectivity and environmental sealing up to IP67 ensure these modules provide a flexible solution to your wireless sensor requirements. The T24-TA works with a PT100 type 385 temperature sensor. Temperature can be transmitted in Celsius, Fahrenheit or Kelvin.
The T24-TA is configured and calibrated (either by applying known inputs or by table entry) using free T24 Toolkit software which runs on a PC connected to a T24 base station.

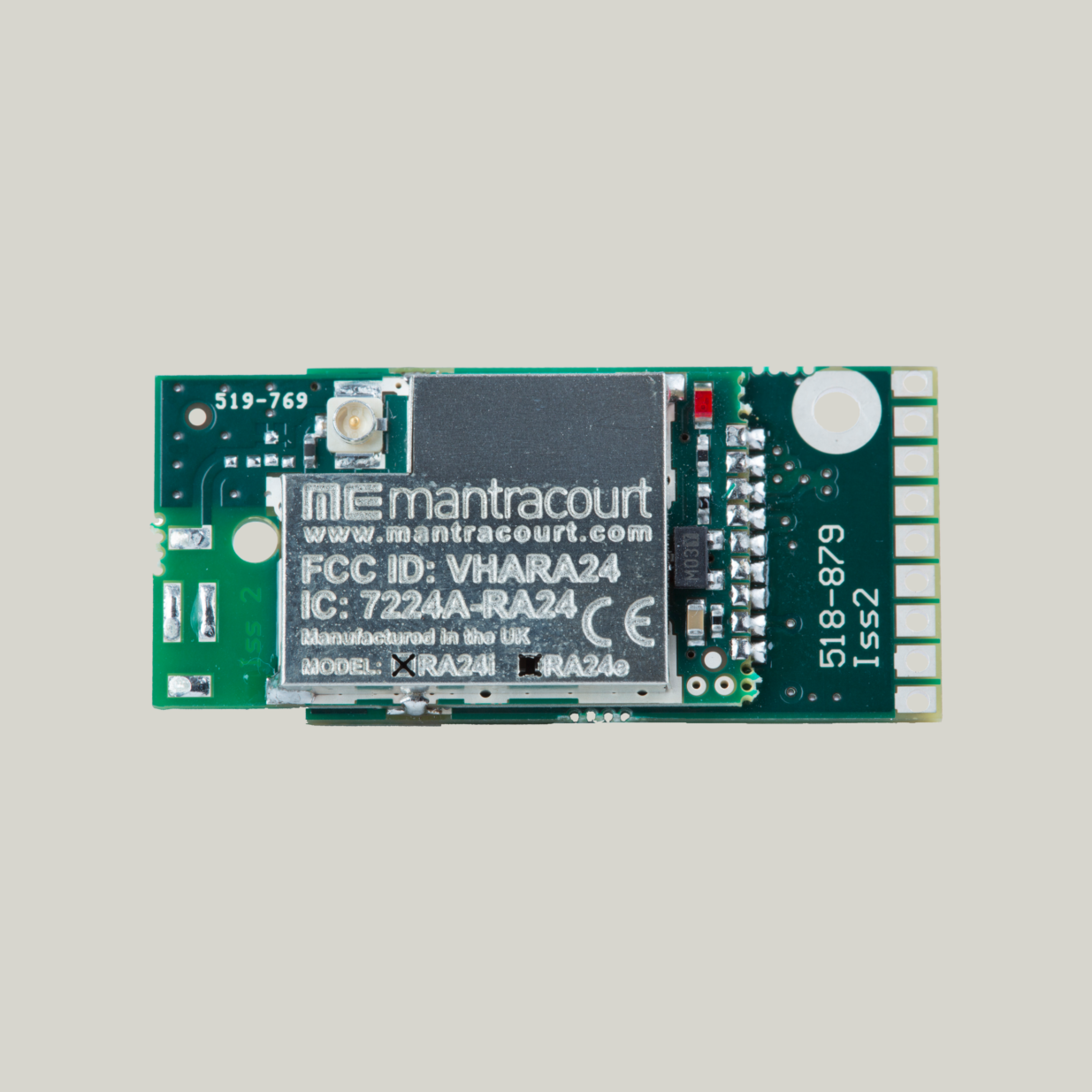

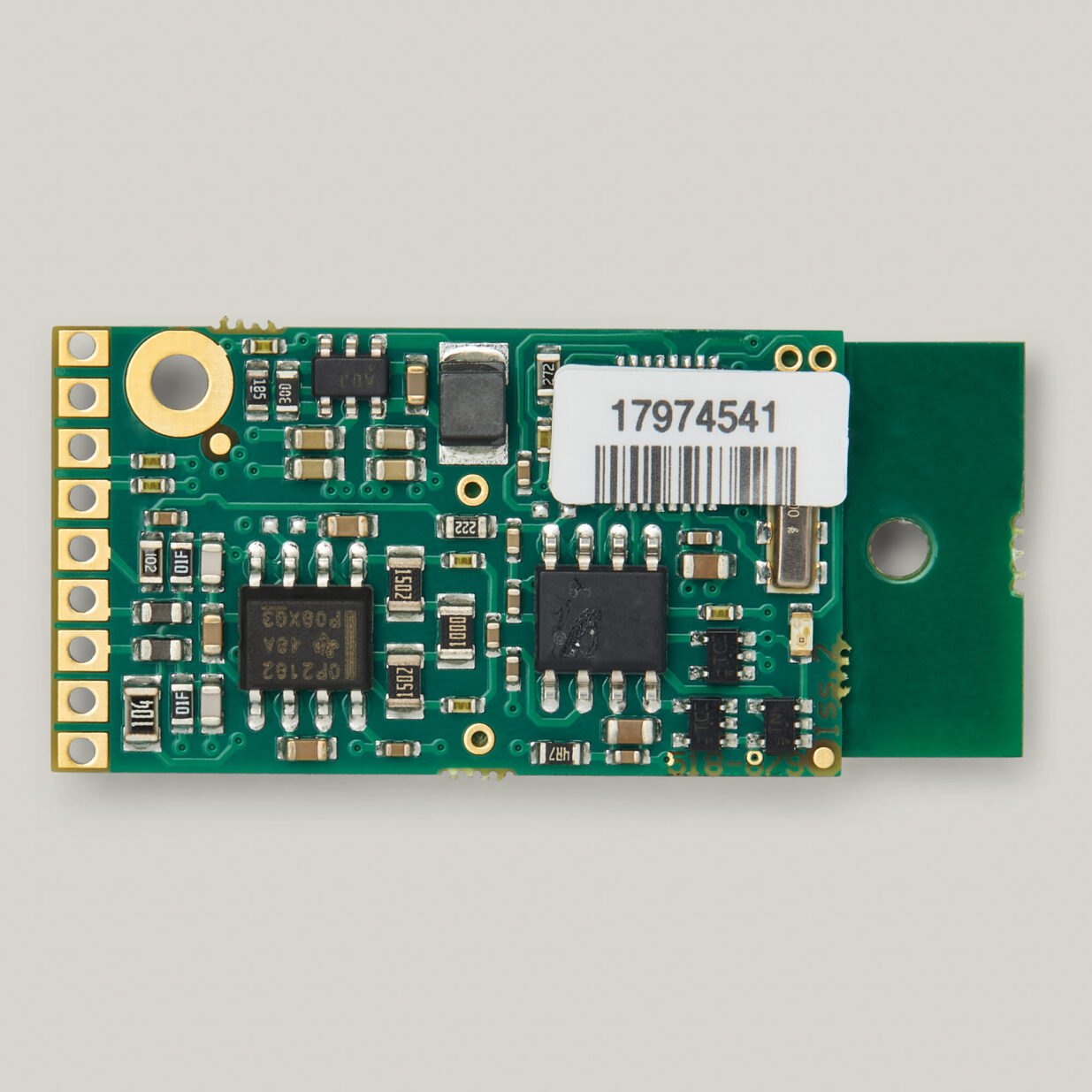

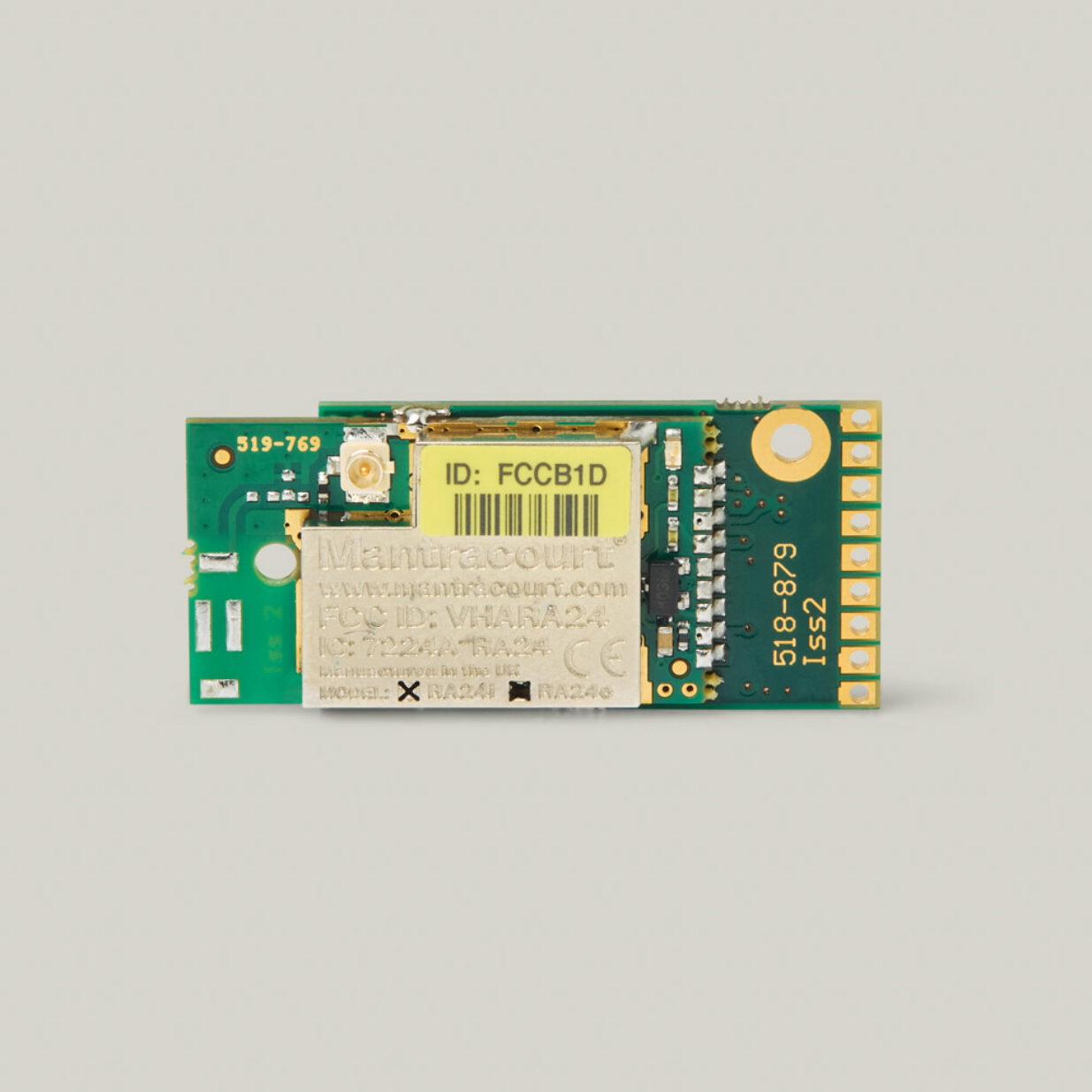

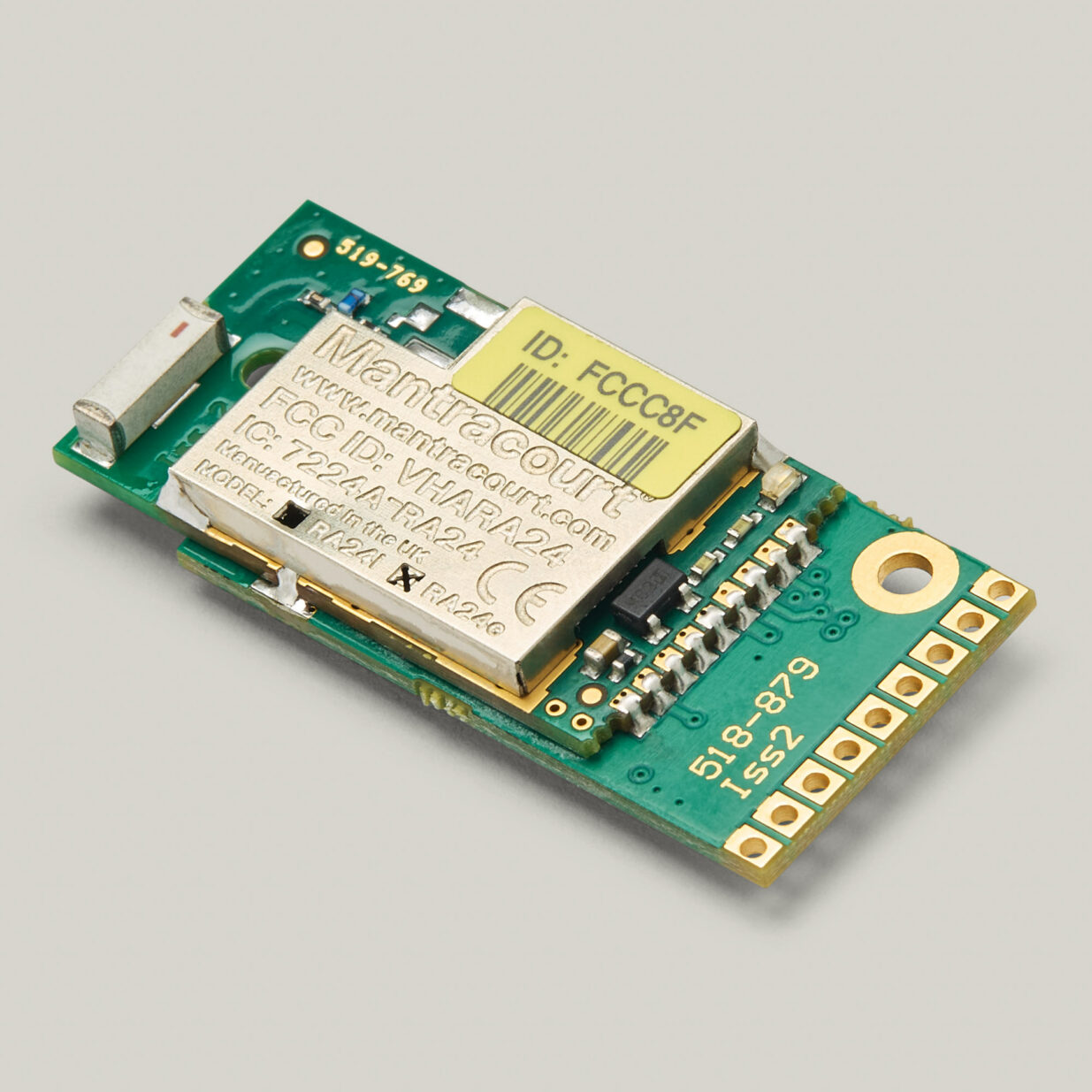

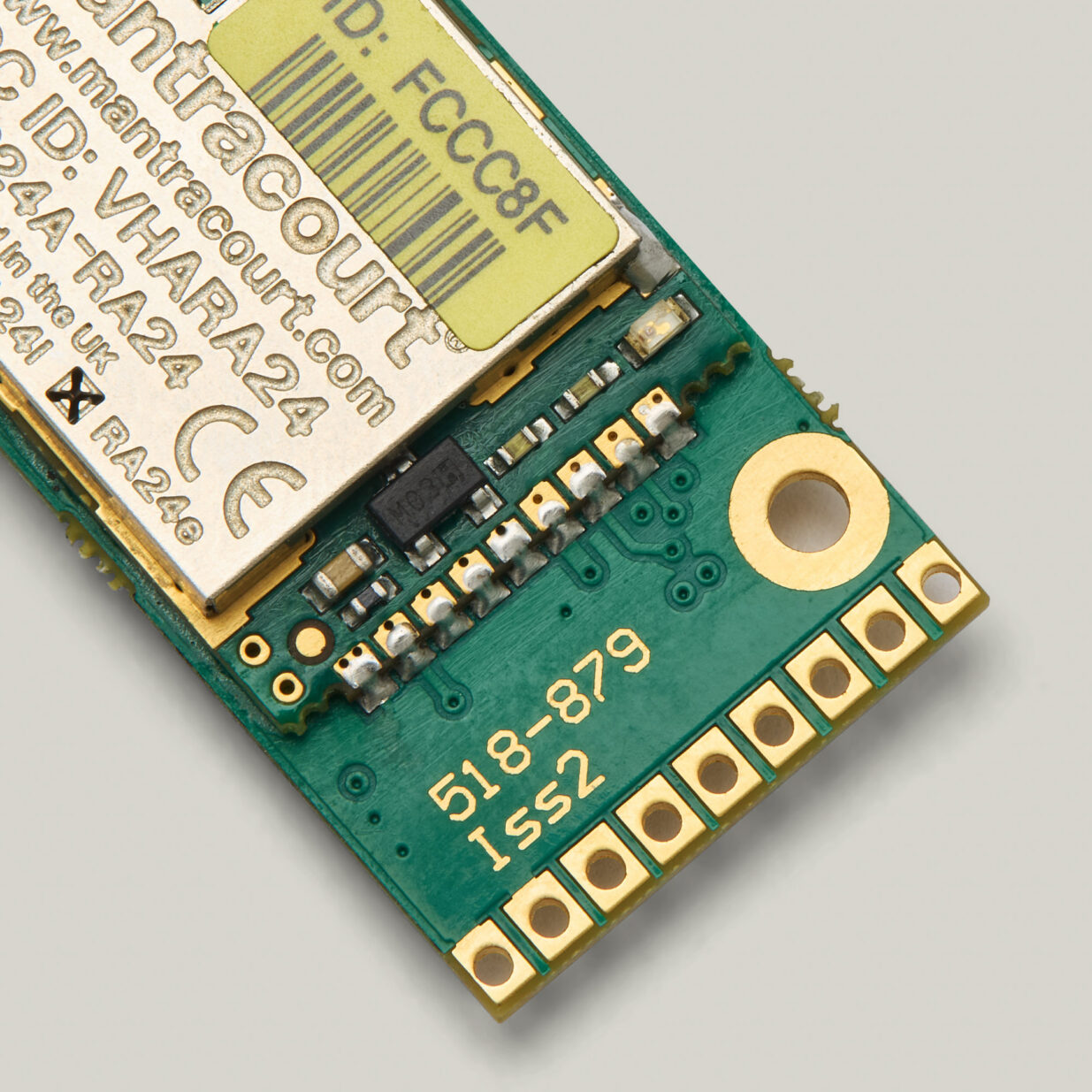

Measuring temperature and periodically transmitting, between transmissions the device can be placed in a power saving sleep mode to conserve batteries. Miniature in size, the wireless temperature PCB transmits on license-free 2.4Ghz, avoiding local radio interference to ensure data integrity and security.
Data is provided in real time at variable speeds with a direct line of sight range of up to 800 meters.
Integral antenna options offers up to 600 m (1969 ft) range (T24-TAi) and external antenna options offering up to 800 m (2600 ft) range in an open field.
Click to view a selection of suitable antennas. This device is also available in a selection of  IP rated enclosures to provide housing and powering. See T24-ACM-TA, T24-ACMi-TA and T24-ACMm-TA
Module transmits and receives giving:
1. Full error detection and correction
2. Ability to switch to low power modes
3. Calibration & configuration via radio telemetry
4. Ability to be switched from sleep to operating mode via radio
5. Calibration stored within the module
6. Remote battery check
*Maximum range achieved in open field site with the T24 acquisition module at a height of 3 metres (9.8 feet) above ground and T24-HS held at chest height pointing towards the acquisition module. Specification at 3V supply at 25°C
Product Features & Benefits
- Wireless transmitter for Pt100 type 385 sensors
- Miniature PCB for fitting inside sensors
- Low power mode
- Remote power ‘on’ and ‘off’
- High speed 200 updates per second
- Transmits on licence free 2.4 GHz
- Simple wireless configuration and calibration
- Antenna options giving up to 800 m (2,600 ft) range
Specifications
| Measurement Specifications | |
|---|---|
| Input range | -200 to 500 ºC |
| Sensor type | Pt100 |
| Accuracy (typical) | 0.1 ºC |
| Non linearity (excludes sensor) | 25 ppm of FR |
| Internal resolution/Bits | 16,000,000 / 24 |
| Noise free resolution/Bits at 1 sample per second | 150,000/17 |
| Transmission rates | From 5ms to 1 day |
| Environmental | |
|---|---|
| Operating temperature range | -20 to 55 ºC |
| Storage temperature range (no batteries) | -40 to 85 ºC |
| Maximum humidity | 95%RH |
| Power Supply | |
|---|---|
| OEM Board | 2.1 to 3.6 Vdc |
| Battery Life Based on transmitting results at 3 per second , 350R strain bridge | |
|---|---|
| Pair AA cells constantly on | 1 month |
| Pair AA cells 12 sessions per day of 5 mins | 2 years |
| Radio | |
|---|---|
| Radio type | Licence exempt transceiver |
| Radio frequency | 2.4 GHz |
| Transmit power | 10 mW |
| Range | Up to 800 m |
| Antenna | PCB Printed or External |
Dimensions
37.5mm x 16.8mm x 6.6mm
Downloads
FAQ
| Q | What type of sensor can I use with this device? |
| A | The T24-TA module is factory calibrated to work with PT100 (Type 385) sensors which have a defined change in resistance per degree. (DIN 43760) |
| Q | What wiring configurations are available? |
| A | The T24-TA can be wired in 2, 3 and 4 wire configurations; users are able to choose the best option for their application depending on accuracy requirements, cost and distance between transmitter module and probe. |
| Q | What units are available? |
| A | The T24-TA can output values in degrees Celsius, degrees Fahrenheit, Kelvin or Ohms. |
| Q | Is there a way to apply a custom calibration? |
| A | There is no custom calibration on the T24-TA device however an offset can be applied to any outputted values. |
| Q | How can I account for long cable length when performing two wire measurements? |
| A | There is a custom offset that can be used. This can be used to offset a temperature inaccuracy due to long cable lengths when using two or three wire connections. |
| Q | What software is provided with the T24 devices? |
| A | All devices are supported by the T24 Tool Kit which allows users to configure all devices from the T24 range as well as view and log data from transmitters modules in range. The software can also be downloaded directly from our website. |
| Q | How many devices can operate on one radio channel? |
| A | Many devices can operate on the same radio channel depending on the sample rate of the transmitter modules present in the system. The radio channel is capable of supporting up to 200 data packets per second. |
| Q | Can PC software gather data from many devices? |
| A | Yes, Mantracourt provides freeware for logging up to 100 inputs to one base station, in addition the free Windows DLL and COM driver can be used to gather data through a customer’s own PC software. |
| Q | What limits the RF range of the devices? |
| A | Any metal surface will reflect 2.4 GHz radio waves, therefore in a sealed metal box, no RF will escape. However by providing a suitable RF window the signals will propagate out. Water and concrete also limit the RF range. |
| Q | Â What Frequency does the system operate on? |
| A | Licence free world wide 2.4GHz, although this frequency is used by other equipment, the T24 range has been tested with Bluetooth, Zigbee & WiFi devices without conflicts. |
| Q | Is the system point to point? |
| A | Yes, however the modules may also operate in many to one (such as multiple data transmitters modules communicating with a base station) and one to many (such as a data transmitter module supplying data to multiple handhelds and displays). |
| Q | Â Is it possible to use wireless range extenders within T24 network? |
| A | The T24-AR wireless range extender which can be added to the system can propagate a signal around corners and obstacles. This unit can also double the effective range – but only once. |
| Q | What sensors would these inputs cover? |
| A | Any sensor that provides a voltage, current or ratio metric interface can be connected to an transmitter module, including load cells, inclinometers, accelerometers, displacement LVDT, pressure, potentiometer, pulse, temperature, humidity, ph, shock |
| Q | What is the communication protocol? |
| A | Proprietary protocol based on a 802.15.4 chip. This allows the T24 range to co-exist with Bluetooth, Zigbee & WiFi devices without conflicts. |
| Q | Â What are the sampling rates of the transmitter modules? |
| A | The T24 standard transmitter modules (SA, IA, VA, RA, TA, PA) sample from 0-200 updates/sec. The T24-SA fast transmitter modules are fixed at 2,000 updates/sec. |
| Q | What is the resolution of the transmitter modules? |
| A | The noise free resolution for a sample time of 10 milli-seconds or less is 15.5 bits for the T24 SA, 12.5 bits for the T24-VA, 14 bits for the VA and 12.25 bits for the T24IA.
The T24-PA’s accuracy % input error @ 1 Hz is 0.15% and for the T24 RA the accuracy is 0.01% of the full scale. With increased sample times resolution can be increased up to 18.75 bits for the T24-SA. |
| Q | Â What is the supply voltage for the transmitter modules? |
| A | 3V for the transmitter modules and handheld displays. Other modules in the range take 9-36 V. |
| Q | How are the modules powered? |
| A | Two standard AA batteries or the T24-BC1 Battery Charger, which provides a re-chargeable power supply using a Li-ion Cell |
| Q | Can power be provided to a sensor? |
| A | Yes, all transmitter modules feature a 5V supply (except the T24-PA which has excitation available in 3,5,12 Vdc @25 mA) which is the excitation voltage used by the T24-SA strain gauge transmitter module. |
| Q | How is the strain gauge transmitter module calibrated? |
| A | The modules are factory calibrated to 2.5 mV/V which can be custom calibrated and linearised over up to 9 points by using the T24 Toolkit. The T24-SAf has fixed factory calibration and cannot be linearised. |
| Q | In the T24 transmitter range what is the difference between the ‘i’ and ‘e’ ? |
| A | The ‘i’ modules (T24-SAi, T24-SAfi, T24-VAi, T24-IAi) all feature an on chip integrated antenna. The ‘e’ modules (T24-SAe, T24-SAfe, T24-VAe, T24-IAe) are fitted with a miniature UFL connector which can be used with any of the antenna options available; the T24-ANTA (PCB antenna) or T24-ANTB (fixed 90 degree Whip antenna) or T24-ANTC (flexible whip antenna). |
| Q | How many transmitter modules can be acquired by the base stations? |
| A | Each base station can use one of 15 channels. From that selected channel a base station can collect data simultaneously from any number transmitter modules depending upon the frequency of readings being provided by the transmitter module. |
| Q | What are the input ranges of the T24 transmitter modules? |
| A | T24-SA 2.5mV/V calibrated strain gauge based measurement; T24-VA 0-10V, T24-IA 4-20mA, T24-TA pt100 sensor input, T24-RA potentiometer 500 to 100000 Ohms and T24-PA 0.5Hz to 3kHz. |
| Q | How many transmitter modules can be acquired by the base stations? |
| A | Each base station can use one of 15 channels. From that selected channel a base station can collect data simultaneously from any number transmitter modules depending upon the frequency of readings being provided by the transmitter module. |
| Q | What are the input ranges of the T24 transmitter modules? |
| A | T24-SA 2.5mV/V calibrated strain gauge based measurement; T24-VA 0-10V, T24-IA 4-20mA, T24-TA pt100 sensor input, T24-RA potentiometer 500 to 100000 Ohms and T24-PA 0.5Hz to 3kHz. |
