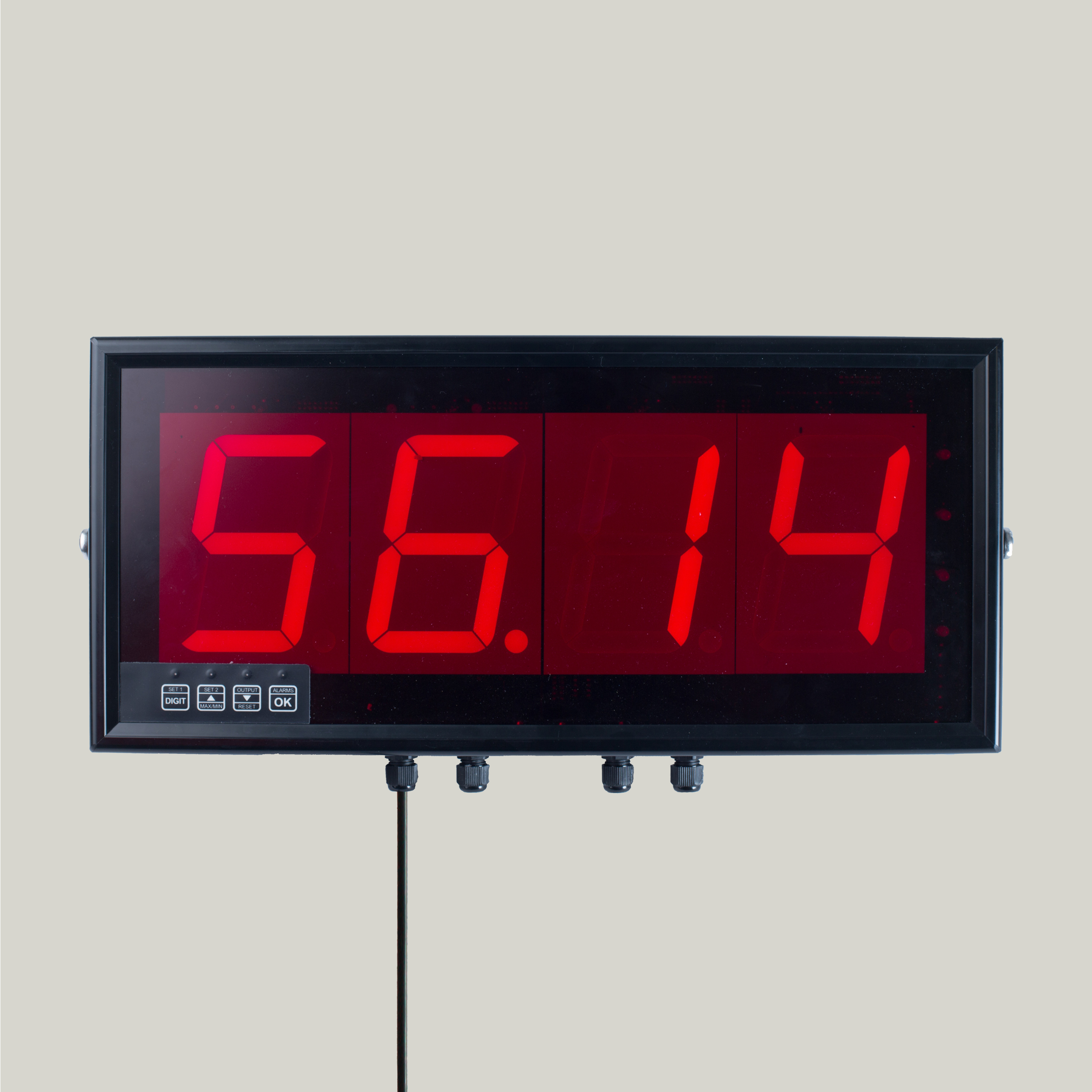

Wireless Telemetry Large LED DisplayT24-LD1
Description
The T24-LD1 is one of several display options within the T24 range. The T24-LD1 provides the user with a large format four-digit display capable of displaying the summed value of up to eight T24 wireless telemetry acquisition devices.
The wireless telemetry large LED display is configured to operate wirelessly using a 2.4 Ghz Worldwide licence exempt radio frequency with a maximum range of up to 800 metres.
The T24-LD1 only requires the connection of a 11-30 VDC power supply (not supplied).
The unit conforms to IP65 / NEMA4.
Using the PC based T24-Toolkit software and T24 USB Base Station the user can quickly and easily select and configure the transmitter devices to be summed on the T24-LD1. The T24 Toolkit also provides advanced user control over the wireless aspects of the system as well as a ‘System Zero’ function.
Further wired Logic Inputs allow the user to remotely control Tare and Net/Gross toggle functions.
*Maximum range achieved in open field site at height of 3 metres (9.8 feet) above ground.
Product Features & Benefits
- T24-LD1 Large screen with four digit LED display
- 100 mm (4″) character format
- Wireless range of up to 800 m (2,600 ft)
- Wired logic Inputs allow the user to remotely control tare and net/gross toggle functions
- Configured to operate wirelessly using a 2.4 GHz Worldwide Licence exempt radio frequency
- Units conversion using output scaling e.g. kgs to lbs
- Simple configuration via PC using a base station with telemetry Toolkit software
- Suitable for crane or weighing applications
- Waterproof to IP65
Specifications
| Environmental | |
|---|---|
| Operating temperature range | 0to 50 ºC |
| Storage temperature range | -20 to 70 ºC |
| Maximum humidity | 95% RH |
| Environmental protection with suitable cables existing through cable glands | IP65 |
| Power Supply | |
|---|---|
| Power supply voltage | 11 to 30 Vdc |
| Supply current (Max) | 3.5 A |
| Radio | |
|---|---|
| Radio type | Licence exempt transceiver |
| Radio frequency | 2.4 GHz |
| Transmit Power | 10 mW |
| Range | Up to 800 m |
Dimensions
