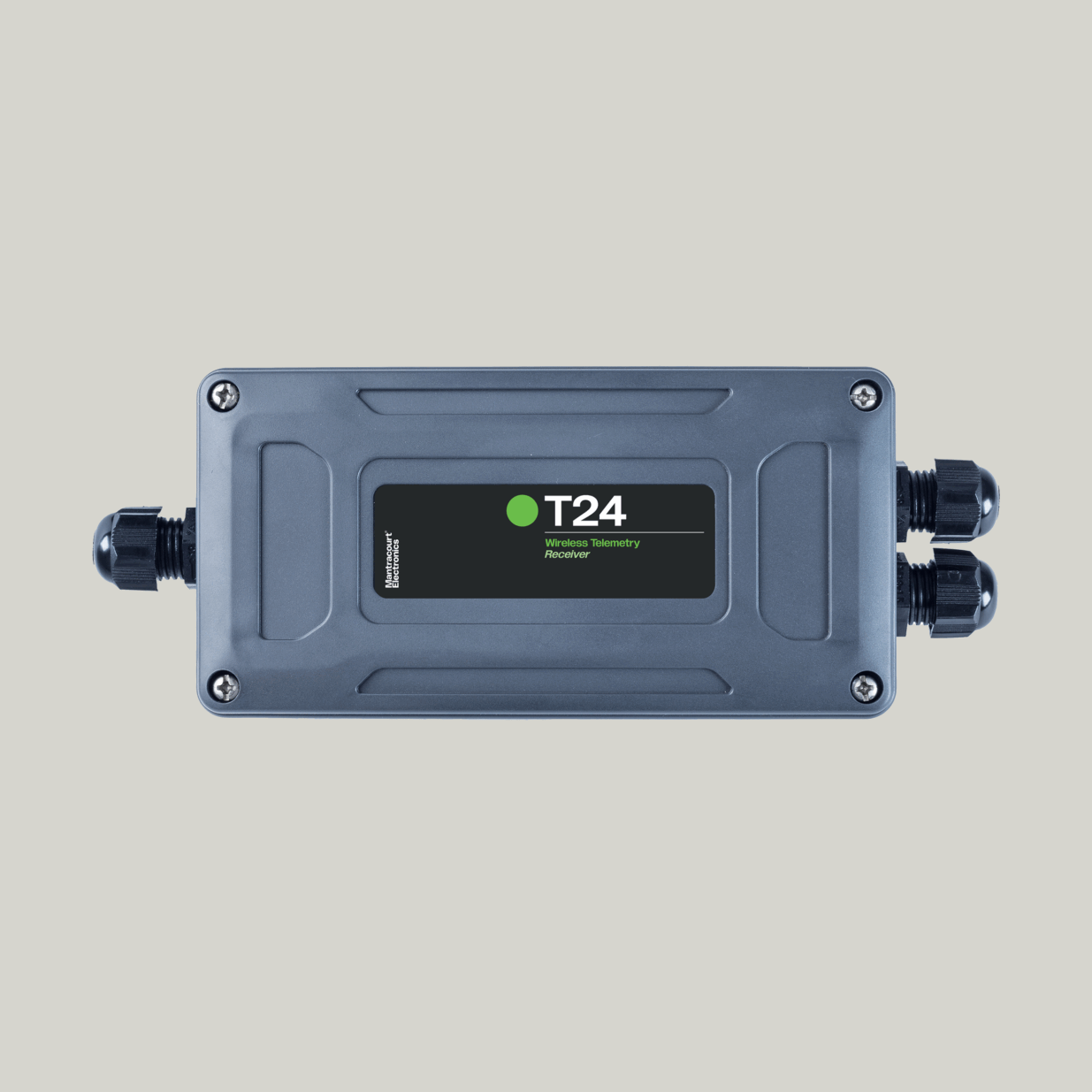

Wireless Telemetry Modbus Gateway ReceiverT24-GW1

The T24-GW1 is a wireless Modbus gateway housed in a durable IP67-rated ACM enclosure, designed to provide seamless integration between T24 wireless telemetry systems and Modbus-compatible industrial devices. Supporting both Modbus RTU and a simplified ASCII protocol, the T24-GW1 enables users to collect live data from up to 100 T24 transmitters over a reliable wireless network.

Ideal for use with PLCs, industrial controllers, and data acquisition systems, the T24-GW1 provides a simple and robust means of accessing measurement data without wiring to each individual sensor. It also supports essential commands for managing the wireless network, including the ability to wake, sleep, and keep awake T24 transmitter modules remotely.

The T24-GW1 offers simple connection to existing DAQ systems such as LabVIEW and DASYLab, making it a flexible solution for laboratory, R&D, and industrial environments requiring high-speed, wireless data acquisition.

Operating on the licence-free 2.4 GHz DSSS radio band, the T24-GW1 offers high-integrity wireless communication with a line-of-sight range of up to 800 metres (2,600 feet). The system is fully compatible with the free T24 Toolkit software, allowing for quick configuration and network management.

With global compliance (ETSI, FCC, IC) and a design optimised for demanding industrial environments, the T24-GW1 provides a reliable, scalable interface for Modbus systems requiring real-time wireless measurement data.

Typical Applications

• Integration with Modbus-based PLCs and industrial control systems

• Wireless temperature, load, pressure, and displacement monitoring

• Simple connection to DAQ systems such as LabVIEW and DASYLab

• Industrial automation and remote asset monitoring

• Factory and process control networks

Module transmits and receives, offering:

1. Full error detection and correction

2. Wireless configuration via T24 Toolkit software

3. Supports Modbus RTU and ASCII protocol interfaces

4. Wake, sleep, and keep-awake control commands for T24 transmitters

5. Internal antenna with up to 800 m range (line-of-sight)

6. Reads from up to 100 T24 transmitters in a single wireless network

Maximum range achieved in open field site with the gateway mounted at a height of 3 metres (9.8 feet) above ground. Specification at 3V supply at 25°C.
