Wireless Telemetry USB Base Station Extended Range RecieverT24-BSue
SKU: T24-BSue
Description

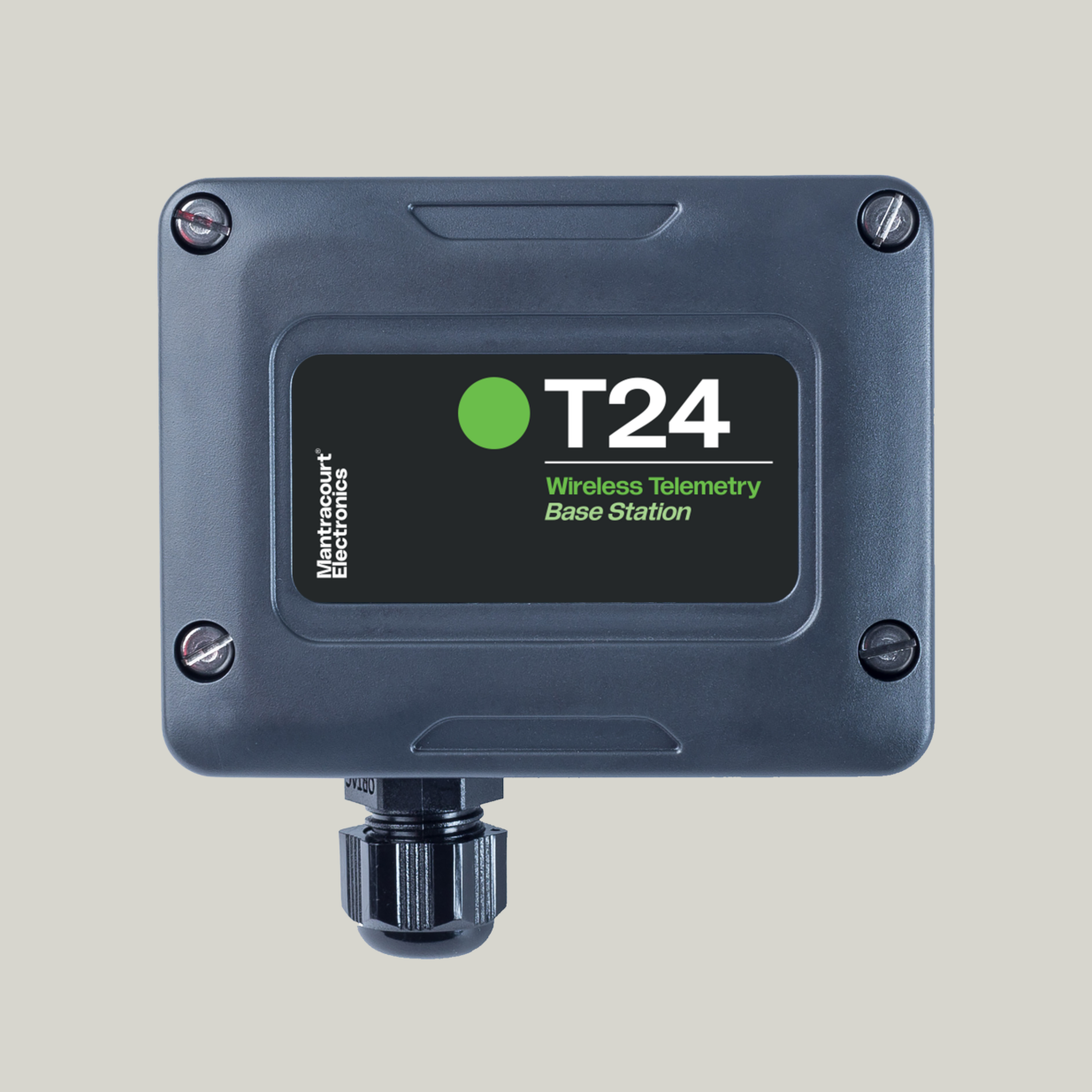

The T24-BSue is a compact wireless USB base station housed in a rugged IP67-rated ACMi enclosure, designed to provide reliable long-range communication between a PC and any T24 wireless transmitter module. Drawing power directly from the USB port, the T24-BSue requires no additional power supply, making it a convenient plug-and-play solution for configuring, monitoring, and controlling T24 devices via a computer.
With a line-of-sight wireless range of up to 800 metres, the T24-BSue is ideal for industrial and remote monitoring applications where extended coverage is essential. The unit transmits on the licence-free 2.4 GHz DSSS frequency band, ensuring robust and interference-resistant communication across the full T24 product range.
The T24-BSue is fully supported by the free T24 Toolkit software, which allows for straightforward wireless configuration, calibration, and diagnostics of T24 modules. In addition, a Dynamic Link Library (.DLL) is available to support the development of custom PC applications using Visual Basic or other compatible environments.
Typical Applications
-
Wireless system configuration and calibration via PC
-
Monitoring T24 data locally or over networks
-
Integration into custom software applications via .DLL
Module transmits and receives, offering:
-
Full error detection and correction
-
Wireless configuration and diagnostics via T24 Toolkit
-
Control of remote devices directly from PC software
-
USB-powered operation, no external supply required
-
Compatible with all T24 transmitter modules
-
Up to 800 m wireless range (line-of-sight)
Maximum range achieved in open field site with the base station mounted at a height of 3 metres (9.8 feet) above ground. Specification at 3V supply at 25°C.
Product Features & Benefits
-
USB wireless base station for use with all T24 transmitter modules
-
Housed in an IP67-rated ACMi enclosure for robust, industrial environments
-
Provides extended wireless range up to 800 m (2,600 ft) line-of-sight
-
Powered directly from the USB port — no external power supply required
-
Operates on licence-free 2.4 GHz DSSS radio band
-
Enables wireless configuration, calibration, and diagnostics via free T24 Toolkit software
-
Supported by Dynamic Link Library (.DLL) for custom PC software development in Visual Basic and other environments
-
Acts as a gateway for PC-based monitoring, data logging, and control
-
Plug-and-play design for fast setup and deployment
Specifications
| Environmental | |
|---|---|
| Operating temperature range | -20 to 55 ºC |
| Storage temperature range (no batteries) | -40 to 85 ºC |
| Maximum humidity | 95%RH |
| Environmental protection with suitable cables existing through cable glands | IP67 / Nema4 |
| Power Supply | |
|---|---|
| USB | 4.875 to 5.125 Vdc |
| Radio | |
|---|---|
| Radio type | Licence exempt transceiver |
| Radio frequency | 2.4 GHz |
| Transmit power | 10 mW |
| Range | Up to 800 m |
Dimensions
80mm X 62mm X 34mm (Not including cable gland)
Downloads
FAQ
| Q | What is the difference between the T24-BSue and the T24-BSu? |
| A | The BSue has a longer wireless telemetry range of 800 m (2,600Â ft), which is provided by the ANT A antenna, compared to the BSu which has a 400 m range and an integral antenna. The BSue is housed in a IP67Â compact enclosure (the BSu is IP50). |
| Q | What is the difference between the T24-BSue and the T24-BSi? |
| A | The BSue is housed in a smaller casing unit. The BSi provides not only USB interface but also RS232 and RS485 multiple baud rates. This module can also be DIN rail mounted. |
| Q | What is the function of the USB and the industrial T24 base stations? |
| A | Both provide users with a PC interface by which collect data from any transmitter module with in range and configure all devices in the T24 range. |
| Q | Once a transmitter module has been configured, will it require regular connections to the base station? |
| A | No. Once a transmitter module has been configured it will remain stable for its lifetime providing its operating limits are not exceeded. |
| Q | What is the cable length of the T24-BSue and can this be extended? |
| A | Â The USB cable length on the T24-BSUe is 1.4m. The base station is considered a USB 2.0 device so is a full speed device. Should a user wish to extend the length of USB cable on the T24-BSUe, the maximum limit advised is in total 5m. We would advise only a good quality USB extender be used measuring 3.5m maximum.
Mantracourt do not recommend replacing the wired USB cable with a longer one. This would invalidate the warranty offered on the product. An alternative, should it be possible, would be using the RS485 interface on the T24-BSi which would go up to 1000m. The T24-BSi also has USB, RS232 and RS485 interface but the same USB conditions would apply. |
| Q | Â Can I connect multiple base stations to one PC? |
| A | You can only have one T24-BSu or T24-BSue connected to any one PC.There are more complex setups possible with the T24-BSi. You will need to download the appropriate DLL driver file to enable this to happen. |
