Wireless Telemetry USB Base Station RecieverT24-BSu
£216.00
Description

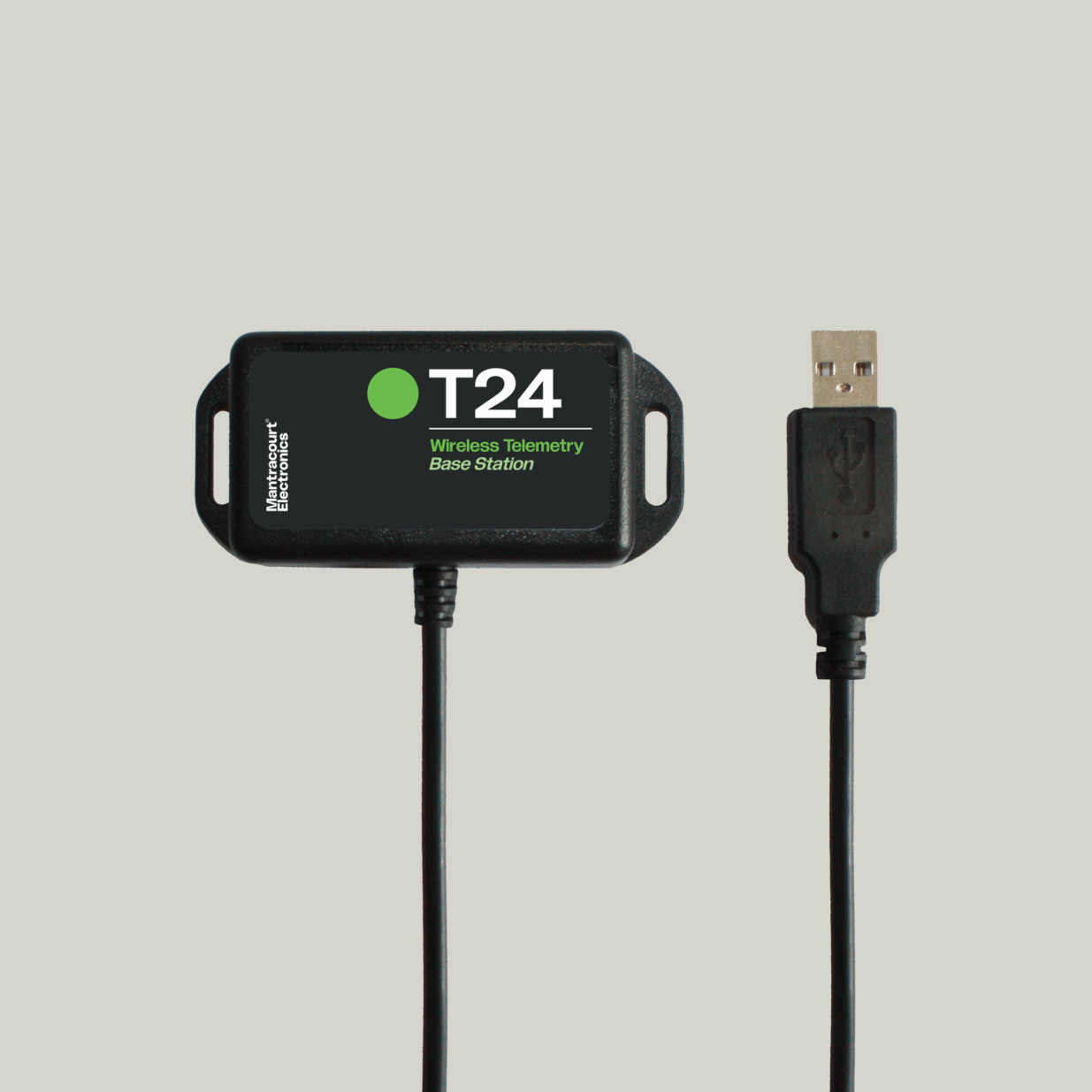

The T24-BSu is a compact wireless USB base station housed in a miniature IP50-rated ACMm enclosure, designed for configuration, control, and data collection from T24 wireless telemetry modules. Drawing power directly from the USB port, the device requires no external power supply and enables fast, plug-and-play setup with a PC.
Featuring an integral antenna, the T24-BSu provides a line-of-sight wireless range of up to 500 metres (1,640 feet) and operates on the licence-free 2.4 GHz DSSS radio band. It ensures high-integrity, interference-resistant communication that coexists reliably with Wi-Fi, Bluetooth®, and Zigbee®. The T24-BSu is ideal for on-site configuration of T24 modules as well as live monitoring and wireless data logging from multiple transmitters.
The device is fully supported by the free T24 Toolkit software for Windows, which allows for wireless configuration, calibration, diagnostics, and monitoring. For software developers, a Windows DLL and COM driver are available to integrate T24 data into custom applications and third-party systems.
The T24-BSu is ETSI, FCC, and IC approved and is suitable for industrial and laboratory use where compact form factor, ease of integration, and flexible software compatibility are required.
Typical Applications
-
PC-based configuration and calibration of T24 transmitter modules
-
Wireless data logging from multiple T24 devices
-
Integration into bespoke software using the provided DLL and COM driver
-
Remote monitoring and diagnostics in production and testing environments
Module transmits and receives, offering:
-
Full error detection and correction
-
Wireless configuration and diagnostics via T24 Toolkit
-
Remote control of T24 modules from a PC
-
USB-powered operation for simple deployment
-
Integral antenna with up to 500 m range (line-of-sight)
-
Compatibility with all T24 transmitters and receiver systems
Maximum range achieved in open field site with the base station mounted at a height of 3 metres (9.8 feet) above ground. Specification at 3V supply at 25°C.
Product Features & Benefits
-
Compact wireless USB base station housed in IP50-rated ACMm enclosure
-
Integral antenna with wireless range up to 500 m (1,640 ft) line-of-sight
-
USB-powered — no external power supply required
-
Enables configuration, calibration, and monitoring of all T24 transmitter modules
-
Supports wireless data logging from multiple T24 transmitters simultaneously
-
Operates on licence-free 2.4 GHz DSSS radio band with robust, interference-resistant communication
-
Fully compatible with free T24 Toolkit software for Windows
-
Includes Windows DLL and COM driver for integration into custom applications
-
Plug-and-play operation for fast setup in industrial and test environments
-
ETSI, FCC, and IC approved for global use
Specifications
| Environmental | |
|---|---|
| Operating temperature range | -20 to 55 ºC |
| Storage temperature range (no batteries) | -40 to 85 ºC |
| Maximum humidity | 95%RH |
| Environmental protection with suitable cables existing through cable glands | IP50 |
| Power Supply | |
|---|---|
| USB | 4.875 to 5.125 Vdc |
| Radio | |
|---|---|
| Radio type | Licence exempt transceiver |
| Radio frequency | 2.4 GHz |
| Transmit power | 10 mW |
| Range | Up to 500 m |
Dimensions
76mm X 35mm X 20mm
Downloads
FAQ
| Q | What is the function of the USB and the industrial T24 base stations? |
| A | Â Both provide users with a PC interface by which collect data from any transmitter module with in range and configure all devices in the T24 range. |

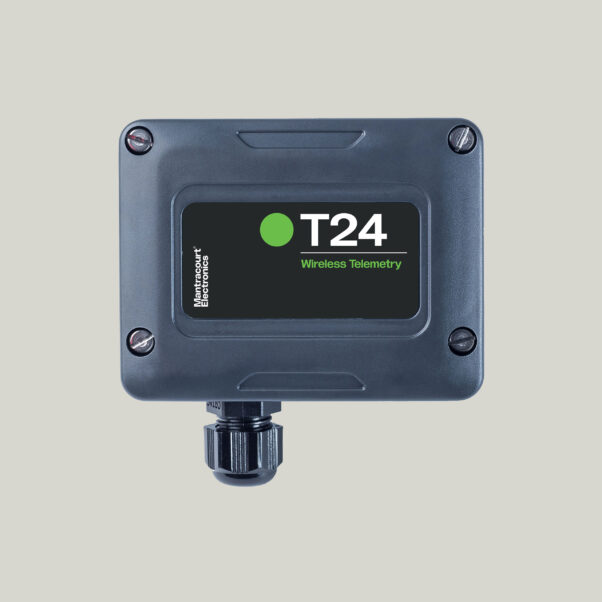

| Q | How is the industrial base station different to the USB base station? |
| A | The industrial base station provides not only USB interface but also RS232 and RS485 at multiple baud rates. This module can also be DIN rail mounted. |
| Q | How many transmitter modules can be acquired by the base stations? |
| A | Each base station can use one of 15 channels. From that selected channel a base station can collect data simultaneously from any number transmitter modules depending upon the frequency of readings being provided by the transmitter module. |
| Q | What is the difference between the T24-SO Serial Output and T24 Base Stations? |
| A | The T24-SO gathers data from up to 8 transmitter modules and, on its serial output, provides a user configurable ASCII string. The output string can contain the summed value of the gathered data. This output can be used to drive serial displays, printers or to simply feed directly into a PC, PLC or other data transmitter systems. The base stations communicate bi-directionally so are used to configure the devices as well as gather data. The communications protocol is binary and packet based and so requires processing to present the data to the application in a formatted manner. |
| Q | How many T24 transmitter modules can be controlled by one USB base station at the same time? |
| A | Transmitter modules are not controlled when providing data, rather data is provided at a user determined rate during configuration set up. The base station can gather data from any number of transmitter modules providing they are on the same channel. The number of modules a single base station can process depends upon the frequency of transmission from the transmitter modules that channel. |
| Q | Can base stations integrate to other communications protocols? |
| A | With the use of the .DLL and COM driver provided with the T24 Tool Kit, users can create tunnelling between the data provided by the base station, to the PC, and another communication protocols. |
| Q | Once a transmitter module has been configured, will it require regular connections to the base station? |
| A | No. Once a transmitter module has been configured it will remain stable for its lifetime providing its operating limits are not exceeded. |
| Q | Â Can I connect multiple base stations to one PC? |
| A | You can only have one T24-BSu or T24-BSue connected to any one PC.There are more complex setups possible with the T24-BSi. You will need to download the appropriate DLL driver file to enable this to happen. |
