Wireless Receiver with Data Port for Display or Printer (T24-SO)

Wireless Receiver with Data Port for Display or Printer (T24-SO)
Quote / Price Request Ask an Engineer Downloads Share Play Videos
Simple Pairing and Calibration
Overview of T24LOG100 Viewing & Mapping Software
Part 2 – Tutorial – Basic Setup of T24LOG100

View more videos on
Our YouTube Channel !

  • Radio telemetry serial ASCII output gateway
  • Drives displays, feeds data to data collections systems, loggers, printers, computers and PLCs etc
  • Wide operating supply range
  • User definable serial ASCII output
  • Surface mounting enclosure
  • Simple configuration and calibration
  • Wireless range with up to 800 m (2,600 ft)
  • Waterproof to IP67
  • View product sheet

The wireless receiver with data port for display or printer module generates a serial output ASCII string which can include data from up to 8 x radio telemetry T24 transmitters as well as optionally sum them. The output is suitable for connecting to many serial input devices that require simple ASCII data.

Click here to view & download associated free software.

The actual ASCII output can be designed by the user which can include free text or tokens which can represent real data. i.e. <V1> would be the value from input module 1 when the output is triggered.

The output of the T24-SO can be triggered by the reception of user specified data. i.e. data is only outputted when data is received from a specific acquisition module or when triggered from a handheld device.

The licence free 2.4 GHz direct sequence spread spectrum (DSSS) radio technology offers high integrity, error free communications which can co-exist with other wireless technologies such as Wi-Fi, Bluetooth® and Zigbee®. FCC, ETSI and IC approvals.

The wireless receiver with data port for display or printer module is configured using free T24 Toolkit software which runs on a PC connected to a T24 base station.

Internal antenna offers up to 800 m (2,600 ft) range in an open field site.

 *Maximum range achieved in open field site at height of 3 metres (9.8 feet) above ground

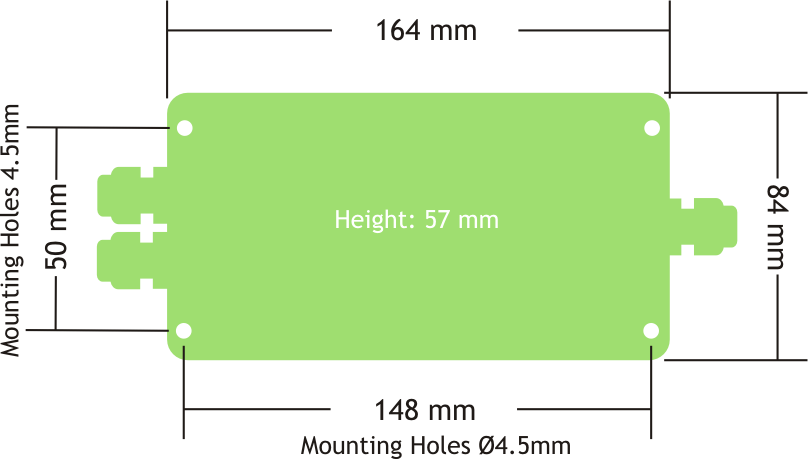

Case dimensions for the radio telemetry input and data output for displays and printers



Documents

Software

  • T24 Toolkit : Version 2.5.12 This toolkit allows configuration, calibration and testing of the T24 range of 2.4GHz telemetry products.

Product order options

T24-SO Code
Wireless Telemetry Printer and Display Driver T24-SO

These are the following industries and applications in which this product has been used:

Remote Digital Display Module

Remote Digital Display Module

SERIALDIS
Q: What does the serial output provide?

A: The serial output provides an ASCII string output of up to 8 values in a user formatted string.

Q: How can I display data using the T24-SO?

A: By combining the T24-SO with a serial display such as Mantracourt’s SerialDis unit a display can be created that updates as often the transmitter module transmits data.

Q: What is the difference between the T24-SO Serial Output and T24 Base Stations?

A: The T24-SO gathers data from up to 8 transmitter modules and, on its serial output, provides a user configurable ASCII string. The output string can contain the summed value of the gathered data. This output can be used to drive serial displays, printers or to simply feed directly into a PC, PLC or other data transmitter systems.
The base stations communicate bi-directionally so are used to configure the devices as well as gather data. The communications protocol is binary and packet based and so requires processing to present the data to the application in a formatted manner.

For more 'Frequently Asked Questions' please see our Knowledge Centre

Click here
