Mount Board for 4 x Digital Load Cell Converters (DSJ4)

Mount Board for 4 x Digital Load Cell Converters (DSJ4)
Mount Board for 4 x Digital Load Cell Converters (DSJ4) Option of stainless steel case
  • PCB only - for housing 4 x DSC digital load cell converter cards
  • Bus connections for communication and power supply
  • 2 part connectors for field terminals
  • LED power indicator
  • CAN compliant - option
  • Option of a waterproof IP65 enclosure NEMA4 bulkhead mounting in grey ABS or stainless steel case
  • Please note: Does not include the case or the 4 x DSCs (shown in the photo on left)
  • See 'Order Info' below for enclosure options

The DSJ4 mount board provides a convenient package that makes interconnection and field mounting of 4 x DSC modules quickly and easily.

The DSJ4 has options for bulkhead, surface or DIN rail mount housing for 4 x DSC digital load cell converter cards. Designed for use with strain gauge sensors such as pressure transducers, load cells and torque sensors, the DSC family offers high speed, high precision signal converter capabilities.

Available output formats include RS485, ASCII, Modbus, MantraCAN (J1939). Please Note: MantraCAN products will only work with Mantracourt software up to and including Windows 10.

For one input channel, model DSJ1 provides connection to a single DSC to a common communications bus. Several DSJ1's or DSJ4's can be connected to the same bus for distributed applications (except when using RS232).

For mounting internal to the sensor, the same electronics are also available in a compact miniature format and is known as the DCell embedded digital load cell converter module.

Note that model DSJ4 is the designation of the printed circuit board complete with the connectors but DOES NOT INCLUDE the DSC load cell interface module or enclosure. Therefore, when selecting this product, be sure to also select the appropriate DSC module and enclosure.

The DSC digital load cell converter card features
High performance at low cost - resolution to 400,000 counts
Fast, up to 500 updates per second
Calibrate by input high/low or by direct entry of mV/V
Remote shunt calibration by software command or digital input
Multi point linerarization
Temperature sensor input for active temperature compensation
Error reporting including strain gauge fault conditions and overloads

DSJ4
Connection 4 x 8 way 2 part terminals for Load Cell Connections (2.5mm² cable max)
1 x 5 way 2 part terminals for Digital Data & Power (2.5mm² cable max)
2 x 9 way D type connectors for Digital Data & Power
Cable Length Maximum length from DSJ4 to Load Cell 3 metres
Maximum length of Digital Data, 1000 metres
Dimensions of ABS case 200 x 120 x 75mm excluding glands
Environmental of ABS case Sealed to IP65 with cable entries via IP67 glands supplied fitted
Enclosure Material ABS
Options
Supply of OEM Card (100 x 183mm) PCB only excluding case
Case alternatives:
Die Cast Case 220 x 120 x 80mm (LDC), Aluminium or Stainless Steel Case 200 x 160 x 85mm sealed to IP65, or a DIN Rail Mount
Environmental
Storage Temperature -20 to +70ºC
Operating Temperature -10 to 50ºC
Relative Humidity 95% maximum non condensing
CE Environmental Approvals European EMC irective 2004/108/EC, Low Voltage Directive 2006/95/EC



  • product logo
  • product logo

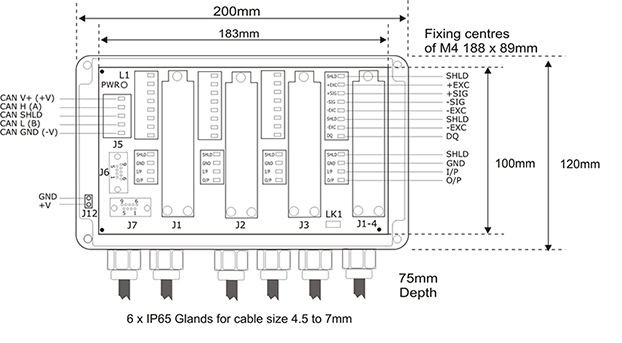

LAB Enclosure Dimensions

Documents

Software

No relevant software available

Product order options

Please read the following before selecting the options for this product:
Note that model DSJ4 is a printed circuit board complete with the connectors but DOES NOT INCLUDE the model DSC digitiser modules. Therefore, when selecting this product, be sure to also select the appropriate type and quantity of DSC modules from the relevant product info page.

Available accessories include a selection of case styles. The various components can be provided pre-assembled and ready for use if ordered at the same time.

Options Code
PCB Mount Board for 4 DSC's DSJ4
Mounting Enclosure Code
IP65 Rated Case and DIN Rail Mounting for DSJ4, LCA, UAB, JBA, SMW D3
Extended Mounting Code
Transparent Plastic Case Lid LTL
Accessories Code
IP65 ABS Grey Case LAB
Stainless Steel IP65 Case with Stainless Steel Lid 220 x 160 x 90 mm LSS
Die Cast IP65 Case with Die Cast Lid 220 x 120 x 80mm LDC

These are the following industries and applications in which this product has been used:

Evaluation Kits for DCell & DSC

Evaluation Kits for DCell & DSC

EVAL KIT
Mount Board for a Single Digital Load Cell Converter

Mount Board for a Single Digital Load Cell Converter

DSJ1
Display Module for DSC/DCell Digital Load Cells (RS485 input)

Display Module for DSC/DCell Digital Load Cells (RS485 input)

DS485DIS
Q: Which protocols with work with the DSJ4?

A: RS485, ASCII, Modbus, CAN, CANopen® & CAN J1939
