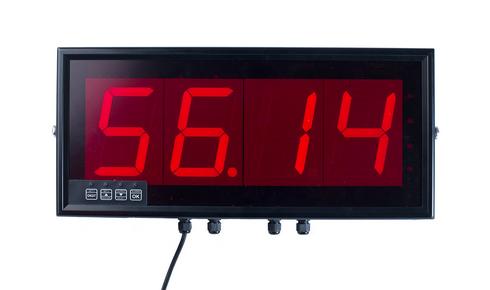

Wireless Telemetry Large LED Display (T24-LD1)

Large LED 4-digit display for long distance viewing applications
Quote / Price Request Ask an Engineer Downloads Share Play Videos
Simple Pairing and Calibration
Overview of T24LOG100 Viewing & Mapping Software
Part 2 – Tutorial – Basic Setup of T24LOG100

View more videos on
Our YouTube Channel !

Easy viewing large LED display can be wall mounted or suspended depending on application
  • T24-LD1 Large screen with four digit LED display
  • 100 mm (4") character format
  • Wireless range of up to 800 m (2,600 ft)
  • Wired logic Inputs allow the user to remotely control tare and net/gross toggle functions
  • Configured to operate wirelessly using a 2.4 GHz Worldwide Licence exempt radio frequency
  • Units conversion using output scaling e.g. kgs to lbs
  • Simple configuration via PC using a base station with telemetry Toolkit software
  • Suitable for crane or weighing applications
  • Waterproof to IP65

The T24 wireless telemetry range is a flexible telemetry system designed to provide high accuracy measurement data from a wide range of sensor outputs. To complement the transmitter modules there are devices that allow the building of telemetry systems, these include displays, printers, relay modules, analogue outputs and serial output devices.

Click here to view & download associated free software.

The T24-LD1 is one of several display options within the T24 range. The T24-LD1 provides the user with a large format four-digit display capable of displaying the summed value of up to eight T24 wireless telemetry acquisition devices.

The wireless telemetry large LED display is configured to operate wirelessly using a 2.4 Ghz Worldwide licence exempt radio frequency with a maximum range of up to 800 metres.

The T24-LD1 only requires the connection of a 11-30 VDC power supply (not supplied).

The unit conforms to IP65 / NEMA4.

Using the PC based T24-Toolkit software and T24 USB Base Station the user can quickly and easily select and configure the transmitter devices to be summed on the T24-LD1. The T24 Toolkit also provides advanced user control over the wireless aspects of the system as well as a ‘System Zero’ function.

Further wired Logic Inputs allow the user to remotely control Tare and Net/Gross toggle functions.

*Maximum range achieved in open field site at height of 3 metres (9.8 feet) above ground.




Dimensions Wall Mounted

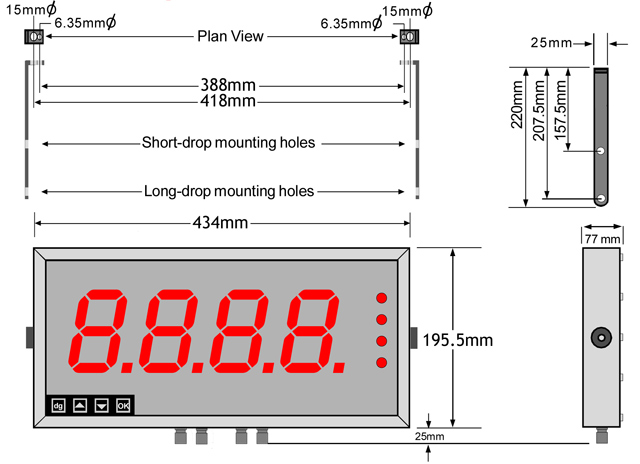

Dimensions Suspended

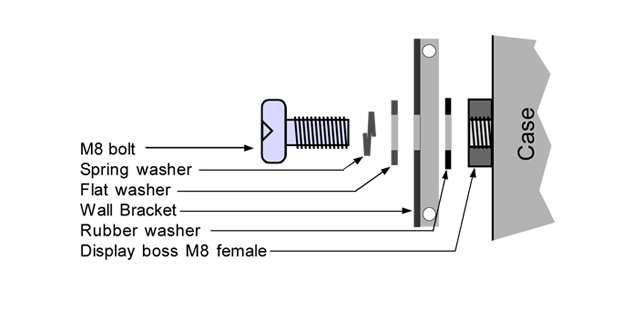

Detail showing bracket hardware fitting sequence:

Documents

Software

  • T24 Toolkit : Version 2.5.12 This toolkit allows configuration, calibration and testing of the T24 range of 2.4GHz telemetry products.

Product order options

T24-LD1 Code
Wireless Telemetry Large LED Display Module T24-LD1

These are the following industries and applications in which this product has been used:

OEM Wireless Strain Gauge Sensor Transmitter

OEM Wireless Strain Gauge Sensor Transmitter

T24-SA
Wireless Telemetry USB Base Station

Wireless Telemetry USB Base Station

T24-BSu
Wireless Telemetry USB Base Station Extended Range

Wireless Telemetry USB Base Station Extended Range

T24-BSue
Wireless Telemetry Radio Base Station

Wireless Telemetry Radio Base Station

T24-BSi
Q: Is the display waterproof?

 A: The display is water resistant to IP65 / NEMA 4 (the product must be mounted on a vertical surface).

Q: What sort of power supply is required?

A: The display requires an external DC power supply rated at 11 – 30V DC and capable of supplying 3.5 Amps.

Q: Is the display affected by bright sunlight?

 A: In situations where this may be an issue the provision of a suitable cowl to shade the display will remove the problem.

Q: Is the brightness adjustable?

A: No

Q: Is the display power supply input reverse polarity protected?

A: Yes

For more 'Frequently Asked Questions' please see our Knowledge Centre

Click here
